The Maxiport ™- 16 Port KVM Switch

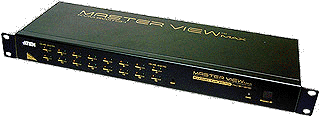

ACS-1216

ACS-1216
Front View
Rear View
Rear View

The ATEN Maxiport™ Master View™ ACS-1216 allows you to access and control up to 512 computers from a single keyboard-monitor-mouse console.

Engineered with advanced features that include a custom ASIC; providing and auto-sensing function, instantly recognizing the position of each station on the chain. No need to manually set any dip switches.

The ACS-1216 features high density 15 pin connectors instead of the usual 25 pin connections. This allows a full 16 port switch to be installed in a 1U system rack. The ACS-1216 is a powerful KVM solution ideal for server rooms and data centres.

  • A Single Console Controls Up To 16 Computers
  • Daisy Chain Up To 31 Additional Units - Control Up to 512 computers From a Single Console
  • Hot Pluggable - Add or Remove Computers Without Having To Power Down the Switch
  • Port Names Automatically Reconfigured When Station Sequence Is Changed
  • Two Level Password Security - Only Authorized Users View and Control the Computers - Up to Four Users Plus an Administrator - Separate Profiles For Each
  • Two Level Logout - Manual and Timed
  • PS/2 Keyboard and Mouse Emulation - Computers Boot Even When the Console Focus is Elsewhere
  • Superior Video Quality - Supports Resolutions of Up To 1920 x 1440
  • Rack Mountable in 19" System Rack (1U)
Application
ACS 1216 Application
Function
Specification
Computer Connections Direct 16
Max 512 (via Daisy Chain)
Port Selection OSD (On Screen Display)
LEDs On Line Port 16
Selected Port 16
Station ID
 2 x 7 Segments
Power 1
Emulation Keyboard PS/2
Mouse PS/2
Video 1920 x 1440; DDC2
Power Consumption DC 9V; 8W (max)
Operating Temperature 5~40 C
Storage Temperature -20~60 C
Humidity 0 - 80% RH
Housing Metal
Weight 2830g
Dimensions 483 x 155 x 45 mm (19" 1U)

Street Price £426
