The Slideaway ™-16 Port LCD KVM Switch
ACS-1216L

ACS-1216L
Front View
Rear View
Rear View

Introducing your total network management solution - the ATEN Slideaway™ a totally new, integrated KVM solution. The ACS-1216L combines a 16 port KVM switch, keyboard, 15" LCD screen and mouse track ball in a 1U high rack drawer!

Just slide the console out, flip the LCD cover and you're ready to go to work!

Streamlined system management - the Slideaway saves you up to one third of your rack cabinet space and also feature high density 15 pin connectors instead of the usual 25 pin connections.

  • A Single Console Controls Up To 16 Computers
  • Daisy Chain Up To 31 Additional Units - Control Up to 512 computers From a Single Console
  • No Software Required - Convenient Computer Selection via Intuitive On Screen Display (OSD) Menus
  • Auto Scan Feature for Monitoring User-Selected Computers
  • Hot Pluggable - Add or Remove Computers Without Having To Power Down the Switch
  • Auto-Sensing of Station Position on Daisy Chained Installations - No Need For Manual DIP Switch Setting - Front Panel LED Indicates Station Position
  • Port Names Automatically Reconfigured When Station Sequence Is Changed
  • Two Level Password Security - Only Authorized Users View and Control the Computers - Up to Four Users Plus an Administrator - Separate Profiles For Each
  • Two Level Logout - Manual and Timed
  • PS/2 Keyboard and Mouse Emulation - Computers Boot Even When the Console Focus is Elsewhere
  • Supports* PS/2 Compatible Mice, Microsoft Intellimouse Explorer, Logitech FirstMouse+
  • Superior Video Quality - Supports Resolutions of Up To 1920 x 1440
  • Rack Mountable in 19" System Rack (1U)

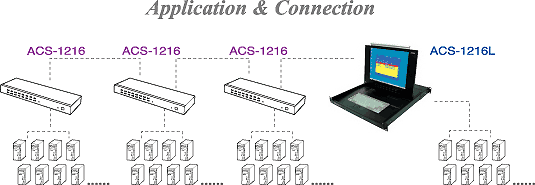

Application of ACS-1216
ACS-1216 Application

Function
Specification
Computer Connections Direct 16
Max 512 (via Daisy Chain)
Port Selection OSD (On Screen Display)
LEDs On Line Port 16 (Orange)
Selected Port 16 (Green)
Power 1 (Blue)
Emulation Keyboard PS/2
Mouse PS/2
Video 1024x768  with 250cd/m2 brightness ; 15" TFT LCD
Power Consumption 120V, 60Hz, 24W

230V, 50Hz, 24W
Humidity 0 - 80% RH
Housing Metal
Weight 12 kg
Dimensions 483 x 517 x 45 mm (19" 1U)

Street Price £1550.00 (ACS-1216L) SPECIAL OFFER Now £1050.00
£949.00 (ACS-1200L) - No KVM Ports LCD, Keyboard and Trackball only SPECIAL OFFER Now £550.00

All prices quoted on this web site are Estimated Street Prices for end-users and exclude Delivery & VAT.

Most items are in stock for next day delivery. Please fax through orders to 0118 988 7301 or e-mail us with your requirements , in either case full contact details such as delivery address, contact phone and fax numbers, together with Credit/Debit card details will be required. Credit cards are accepted subject to a 2% surcharge.  No surcharge on Switch,  Delta or Solo Debit cards. If you prefer not to send your card details via e-mail we will gladly call you back the next day to take these details.

For larger quantities and Computer Trade discounts please call us on 0118 988 7300 or e-mail us with full contact details . If you already hold an account with AVD the goods will be dispatched the same day. New trade account applications can also be dispatched the same day provided a suitable Debit / Credit card can be quoted.
