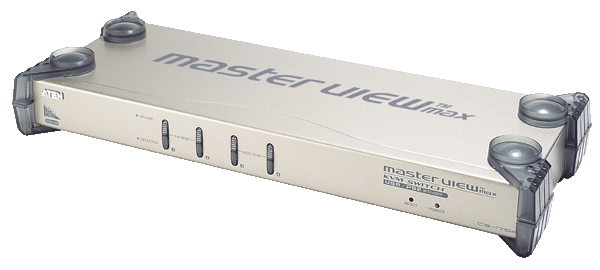

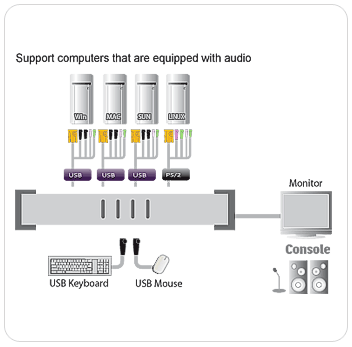

Rear View	4 Port KVM Switch (CS-1754) 4 Port High Density KVM Switch for PS/2 and USB computers CS1754 is a KVM Switch with 4 ports and supports computers with PS/2 or USB interfaces via cables and audio signal function. Moreover, it supports 3-tier connection via cascade. With 21 sets of CS1754, users can control 64 computers. CS1754 provides growing enterprises a reliable investment on comprehensive connection and long-term safe use Features Single USB console controls up to 4 computers Cascadable up to 3 levels - provides up to 64 computers. Dual Interface supports computers with PS/2 or USB keyboards and mice.  Multiplatform support: compatible with all operation platforms PC (Windows,Linux and most others), Mac and Sun.  Auto PS/2 and USB interface detection. Buzzer On/Off via hotkey and OSD Computer selection via front panel pushbuttons, hotkeys and OSD Superior video quality - up to 2048 x 1536; DDC2B. Firmware upgradable.   With speaker and microphone support.   ATEN USB ASIC inside.  Rack mountable in 19" system rack. Functions Package Contents 1x 4-Port PS/2-USB KVM Switch   1x Firmware Upgrade Cable   1x Power Adapter   1x Rack Mount Kit   1x User Manual   1x Quick Start Guide Specifications CS1758 PC Connection Direct 4 Max 64 (via Cascade ) Console Connections Keyboard 1 x USB Type A Female (White) Video 1 x HDB-15 Female (Blue) Mouse 1 x USB Type A Female (White) Speaker 1 x Mini Stereo Jack Female (Green) Microphone 1 x Mini Stereo Jack Female (Pink) PC Selection Hotkey, Pushbutton, OSD KVM Connections Keyboard / Video / Mouse 4 x SPHD-15 Female (Yellow) Speaker 4 x Mini Stereo Jack Female (Green) Microphone 4 x Mini Stereo Jack Female (Pink) Other Connections F/W upgrade 1 x RJ-11 (F) Black Power 1 x DC Jack (Black) LEDs On Line 4 (Orange) Selected 4 (Green) Power 1 (Blue) Enclosure Metal Weight 2640g Dimension(LxWxH) 450x170x67mm Keyboard / Mouse Emulation USB Scan Interval 1 ~ 255 Seconds Resolution 2048 x 1536, DDC2B Operation Temperature 0° ~ 50° Storage Temperature -20° ~ 60° Humidity 0 ~ 80% RH, NC
Street Price £262 All prices quoted on this web site are Estimated Street Prices for end-users and exclude Delivery & VAT. Most items are in stock for next day delivery. Please fax through orders to 0118 988 7301 or e-mail us with your requirements , in either case full contact details such as delivery address, contact phone and fax numbers, together with Credit/Debit card details will be required. Credit cards are accepted subject to a 2% surcharge.  No surcharge on Switch,  Delta or Solo Debit cards. If you prefer not to send your card details via e-mail we will gladly call you back the next day to take these details. For larger quantities and Computer Trade discounts please call us on 0118 988 7300 or e-mail us with full contact details . If you already hold an account with AVD the goods will be dispatched the same day. New trade account applications can also be dispatched the same day provided a suitable Debit / Credit card can be quoted.
