Master View Pro
8 Port Professional Multi Console KVM Switch
with On Screen Display

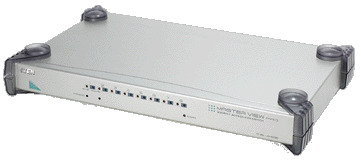

CS-428
CS-428

Primarily for use in large installations. This switch allows four separate consoles to access eight computers, either independently or on a multi user shared basis. Any computer on the installation can be accessed via the menu driven OSD function. Password protection is provided in order to prevent unauthorized access to the computers. This switch also has built in microphone and speaker support. To reduce clutter, and enhance signal quality, this switch utilizes custom ATEN KVM cables with DB-25 connectors that plug into the switches CPU ports. Featuring advanced On Screen Display for convenient computer selection as well as built in microphone and speaker support.
  • Microsoft Intellimouse, Logitech First Mouse+, Mouse Man+, IBM scrollpoint... Support
  • PS/2 and Serial Mouse Emulation provided for system bootup
  • Mouse Conversion - PS/2 Mouse Controls All Connected PCs - Even Those With Serial Mice
  • Four consoles share eight computers
  • Multiuser Operation - Any console can access any computer
  • Multilevel Password security
  • Hot Pluggable - Add PCs or Remove Connected PCs For Maintenance Without Powering Down the CPU Switch
  • PS/2 Style Keyboards Control All PCs - Regardless Of Whether They Are Configured For AT or PS/2 Keyboards
  • Superior Video Quality - Up To 1920 x 1440
  • LCD, SVGA, VGA and Multisync Monitor support
  • No Software Required - Easy PC Selection via Front Panel Pushbuttons, Hot Keys or OSD Menus
  • Built In OSD* (On Screen Display) Allows PCs to be Named and Accessed via a Menu Driven Interface
  • Quick Scan Mode for Monitoring Selected PCs
  • Cascadable To Three Levels using CS-9138
  • LED Display For Easy Status Monitoring
  • Custom Cables for Superior Signal Quality
  • Microphone and Speaker Support built in


Features
Function Specification
Console 1, 2
 Keyboard
 2 x 6 pin mini DIN Female
Mouse
 2 x 6 pin mini DIN Female
Monitor
 2 x 15 pin HDB Female
Audio Stereo
 2 x Microphone Jacks
2 x Speaker Jacks
Console 3,4
 2 x 25 pin D-Type Female
PC Connection Direct 8 x 25 pin D-Type Female
Port Selection OSD
LEDs Selected 8
On Line 8
Power 1
Emulation Keyboard PS/2; PC/AT
Mouse PS/2; Serial
VGA Resolution 1920 x 1440 (Max.); DDC2
Power Consumption DC 9V  7.2W (Max.)
Scan Interval Setting 1~255 sec.
Housing Metal
Weight 4200 g
Dimensions 433 x 254 x 44 mm (L x W x H)[19" 2U]
Street Price £469 SPECIAL OFFER Now £299.00

All prices quoted on this web site are Estimated Street Prices for end-users and exclude Delivery & VAT.

Most items are in stock for next day delivery. Please fax through orders to 0118 988 7301 or e-mail us with your requirements , in either case full contact details such as delivery address, contact phone and fax numbers, together with Credit/Debit card details will be required. Credit cards are accepted subject to a 2% surcharge.  No surcharge on Switch,  Delta or Solo Debit cards. If you prefer not to send your card details via e-mail we will gladly call you back the next day to take these details.

For larger quantities and Computer Trade discounts please call us on 0118 988 7300 or e-mail us with full contact details . If you already hold an account with AVD the goods will be dispatched the same day. New trade account applications can also be dispatched the same day provided a suitable Debit / Credit card can be quoted.
