Master View
2 Port Cable KVM Switch
CS-521Z / CS-522Z

CS-521
CS-522

CS-521Z
CS-522Z

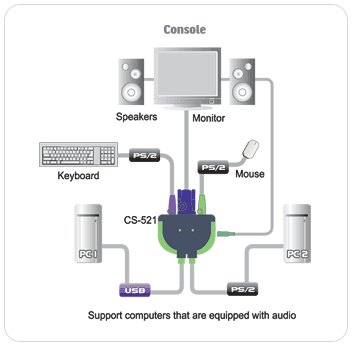

Complete interface harmony. Bring your PS/2 console together with your PS/2 and USB computers. The CS-521 2 Port PS/2 USB KVM Switch (PS/2 console 1 PS/2 and 1 USB computer).
You can also opt for the CS-522 2 Port PS/2 USB KVM Switch (PS/2 console controls 2 USB computers)

Features

  • PS/2 console controls 1 PS/2 and 1 USB computer (CS-521Z)
  • PS/2 console controls 2 USB computer (CS-522Z)
  • Dual Interface PS/2 & USB co-existence
  • Compact design, Built in 4' cables
  • With speaker support
Function

CS-521
Package Contents
  • 1 CS-521 Two Port Petite KVM Switch with Attached Cables
  • 1 User Manual
  • 1 Quick Start Guide

Specifications

CS-521
 CS-522
Computer Connections 2
Computer Port Selection Hotkey
Connectors Console Keyboard 1 x Mini Din 6 Female (Purple)
Video 1 x Mini Din 6 Female (Purple)
Mouse 1 x Mini Din 6 Female (Green)
Speaker 1 x Earphone Jack Female (Green)
Computers Keyboard 1 x Mini Din 6 Male (Purple) n/a
Video 2 x HDB15 Male (Blue)
Mouse 1 x Mini Din 6 Male (Green)n/a
USB(K/B,Mouse) 1 x USB Type A Male (Black)2 x USB Type A Male (Black)
Speaker 2 x Earphone Plug Male (Green)
LEDs Selected 2 (Green)
VGA Resolution 2048 x 1536, DDC2B
Scan Interval 3, 5, 10, 20 seconds
Housing Plastic
Weight 410g 320g
Dimensions ( L x W x H ) 73 x 58.5 x 22.5mm

Street Price
£26.00 CS-521Z  SPECIAL OFFER Now £20.00
£25.00 CS-522Z SPECIAL OFFER Now £20.00

All prices quoted on this web site are Estimated Street Prices for end-users and exclude Delivery & VAT.

Most items are in stock for next day delivery. Please fax through orders to 0118 988 7301 or e-mail us with your requirements , in either case full contact details such as delivery address, contact phone and fax numbers, together with Credit/Debit card details will be required. Credit cards are accepted subject to a 2% surcharge.  No surcharge on Switch,  Delta or Solo Debit cards. If you prefer not to send your card details via e-mail we will gladly call you back the next day to take these details.

For larger quantities and Computer Trade discounts please call us on 0118 988 7300 or e-mail us with full contact details . If you already hold an account with AVD the goods will be dispatched the same day. New trade account applications can also be dispatched the same day provided a suitable Debit / Credit card can be quoted.
