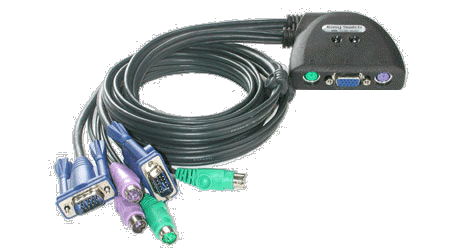

Master View 2 Port Cable KVM Switch ACS-62

The MasterView ACS-62 KVM Switch is a simple control unit that allows access to two computer systems from a single console (keyboard, monitor and mouse). Now with a very small desktop footprint and convenient built in custom KVM cables for hassle free access. The self powered ATEN ACS-62 provides mouse and keyboard emulation, and convenient Hot Key combinations to access the connected computers. Set up is fast and easy; plugging the cables into the appropriate ports is all that is required. There is no software yto configure, no installation routines, and no incompatibility problems.

2 Computers can share a Single Console (Monitor, PS/2 Keyboard and Mouse) Supports 1920 x 1440 DDCDDC2, DDC2B Resolution Easy to Install - No Software required, Standard cables to connect to the Computer are included Easy to operate - Computer selection via Hot Keys - Auto scan function to monitor computer operation Compatible with all operating Platforms LED Display For Easy Status Monitoring Saves time, space, power and equipment costs Hot pluggable Non-powered Supports DDC2B (Display Data Channel)

Features

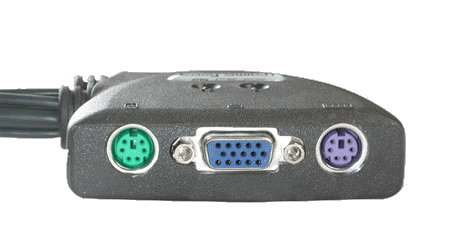

Function Specification PC Connection Direct 2 Port Selection Hot Keys  LEDs Selected 2 Green Emulation Keyboard PS/2   Mouse PS/2 Connectors Keyboard 1 x 6 pin mini-DIN Female (PS/2)-Console     2 x 6 pin mini-DIN Male (PS/2)-CPU Port   Mouse 1 x 6 pin mini-DIN Female (PS/2)-Console     2 x 6 pin mini-DIN Male (PS/2)-CPU Port   Video 1 HDB-15 Female (Std. VGA/SVGA)-Console     2 HDB-15 Male (Std. VGA/SVGA)-CPU Port VGA Resolution 1920 x 1440 (Max.); DDC;DDC2;DDC2B Scan Interval 3, 5, 10, 15, 20 sec. Housing Plastic Weight 162g Dimensions 120 x 50 x 25 mm (L x W x H) Rear View
