Master View
4 Port Cable KVM Switch
ACS-64AZ
CS-64AZ
The MasterView ACS-64AZ KVM Switch is a simple control unit that allows access to four computer systems from a single console (keyboard, monitor and mouse). Now with a very small desktop footprint and convenient built in custom KVM cables for hassle free access. The self powered ATEN ACS-64AZ provides mouse and keyboard emulation, and convenient Hot Key combinations to access the connected computers. Set up is fast and easy; plugging the cables into the appropriate ports is all that is required. There is no software to configure, no installation routines, and no incompatibility problems.


Features

  • 4 Computers can share a Single Console (Monitor, PS/2 Keyboard and Mouse)
  • Supports 2048 x 1536 DDC2B Resolution
  • Easy to Install - No Software required, Standard cables to connect to the Computer are included
  • Easy to operate - Computer selection via Hot Keys - Auto scan function to monitor computer operation
  • Compatible with all operating Platforms
  • LED Display For Easy Status Monitoring
  • Saves time, space, power and equipment costs
  • With Speaker support
  • Non-powered
  • Supports DDC2B (Display Data Channel)
Function
CS-64AZ

Package Contents

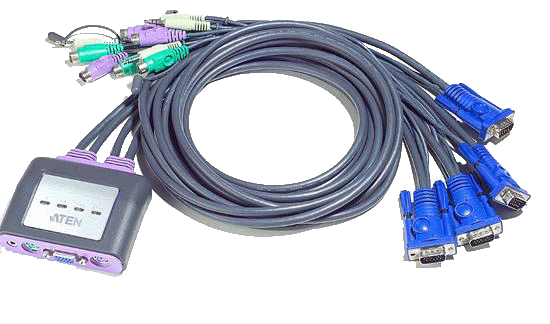

  • 1 CS-64A Four Port Petite KVM Switch with Attached Cables
  • 1 User Manual
  • 1 Quick Start Guide
Specifications
Function
Specification
PC Connection Direct 4
Port Selection Hot Keys
LEDs Selected 4 Green
Emulation Keyboard PS/2
  Mouse PS/2
Connectors Keyboard 1 x 6 pin mini-DIN Female (PS/2)-Console
    4 x 6 pin mini-DIN Male (PS/2)-CPU Port
  Mouse 1 x 6 pin mini-DIN Female (PS/2)-Console
    4 x 6 pin mini-DIN Male (PS/2)-CPU Port
  Video 1 HDB-15 Female (Std. VGA/SVGA)-Console
    4 HDB-15 Male (Std. VGA/SVGA)-CPU Port
VGA Resolution 2048 x 1536 (Max.); DDC2B
Scan Interval 3, 5, 10, 15, 20 sec.
Housing Plastic
Weight 900g
Dimensions 90 x 72 x 26 mm (L x W x H)

Street Price £48.00
