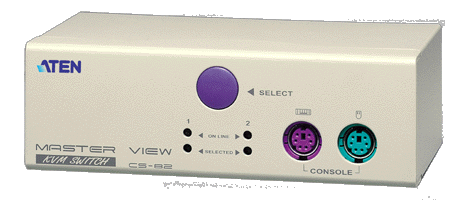

Master View 2 Port Mini Desktop KVM Switch CS-82C

The MasterView CS-82 KVM Switch is a control unit that allows access to two computer systems from a single console (keyboard, monitor and mouse). There are two convenient methods to access the connected computers: with the Push Button Selection Switch located on the front panel; or by entering Hot Key combinations from the keyboard.  Featuring a stylish, compact shape with a new logically designed connector layout. Two 1.2m cables are included in the box. Optional longer cables are available.

2 Computers can share a Single Console (Monitor, PS/2 Keyboard and Mouse) Easy to reach Pushbutton on the front panel for quick and convenient PC Selection Supports 1920 x 1440 Resolution Easy to Install - No Software required, Standard cables to connect to the Computer are included Easy to operate - Computer selection via Push Button Switch or Hot Keys - Auto scan function to monitor computer operation Compatible with all operating Platforms Notebooks can use the Consoles Mouse and Keyboard at the same time LED Display For Easy Status Monitoring Saves time, space, power and equipment costs Non-powered Supports DDC2B (Display Data Channel)

Features

Function Specification PC Connection Direct 2 Port Selection Push Button / Hot Keys  LEDs Selected 2 On-Line 2 Emulation Keyboard PS/2 and PC/AT   Mouse PS/2  Connectors Keyboard 1 x 6 pin mini-DIN Female (PS/2)-Console     2 x 6 pin mini-DIN Female (PS/2)-CPU Port   Mouse 1 x 6 pin mini-DIN Female (PS/2)-Console     2 x 6 pin mini-DIN Female (PS/2)-CPU Port   Video 1 HDB-15 Female (Std. VGA/SVGA)-Console     2 HDB-15 Male (Std. VGA/SVGA)-CPU Port VGA Resolution 1920 x 1440 (Max.); DDC;DDC2;DDC2B Scan Interval 5 sec. Housing Metal Weight 420 g Power consumption DC9V 180mW (Max) Cable Requirement 2L-1001P (PS/2; 1.8 m) / 2L-1003P (PS/2; 3 m) Dimensions 128 x 75 x 45 mm (L x W x H)
