Master View
4 Port Desktop KVM Switch
CS-84AC
CS-84AC KVM

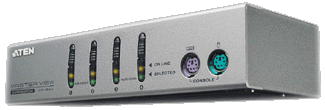

The MasterView CS-84A KVM Switch is a control unit that allows access to four computer systems from a single console (keyboard, monitor and mouse). There are two convenient methods to access the connected computers: with the Push Button Selection Switches located on the front panel; or by entering Hot Key combinations from the keyboard.  Featuring a stylish, compact shape with a new logically designed connector layout. Two 1.2m and two 1.8m cables are included in the box. Optional longer cables are available.



  • 4 Computers can share a Single Console (Monitor, PS/2 Keyboard and Mouse)
  • PS/2 Compatible Mouse support - Microsoft Intellimouse Pro and Logitech FirstMouse support
  • Keyboard and Mouse emulation for error free booting
  • Easy to reach Pushbuttons on the front panel for quick and convenient PC Selection
  • Supports 1920 x 1440 Resolution
  • Easy to Install - No Software required, Standard cables to connect to the Computer are included
  • Easy to operate - Computer selection via Push Button Switch or Hot Keys - Auto scan function to monitor computer operation
  • Compatible with all operating Platforms
  • Notebooks can use the Consoles Mouse and Keyboard at the same time
  • LED Display For Easy Status Monitoring
  • Saves time, space, power and equipment costs
  • Non-powered
  • Supports DDC2B (Display Data Channel)

Features
Function
Specification
PC Connection Direct 4
Port Selection Push Button / Hot Keys
LEDs Selected 4

On-Line 4
Emulation Keyboard PS/2 and PC/AT
  Mouse PS/2 and Serial
Connectors Keyboard 1 x 6 pin mini-DIN Female (PS/2)-Console
    4 x 6 pin mini-DIN Female (PS/2)-CPU Port
  Mouse 1 x 6 pin mini-DIN Female (PS/2)-Console
    4 x 6 pin mini-DIN Female (PS/2)-CPU Port
  Video 1 HDB-15 Female (Std. VGA/SVGA)-Console
    4 HDB-15 Male (Std. VGA/SVGA)-CPU Port
VGA Resolution 1920 x 1440 (Max.); DDC;DDC2;DDC2B
Scan Interval 3, 5, 10, 15, 20, 30, 40, 60 sec.
Housing Metal
Weight 2850 g
Power consumption
 DC9V 360mW (Max)
Cable Requirement 2L-1001P (PS/2; 1.8 m) / 2L-1003P (PS/2; 3 m)
Dimensions 200 x 75 x 42 mm (L x W x H)

Street Price £75.00 SPECIAL OFFER Now £60.00

All prices quoted on this web site are Estimated Street Prices for end-users and exclude Delivery & VAT.

Most items are in stock for next day delivery. Please fax through orders to 0118 988 7301 or e-mail us with your requirements , in either case full contact details such as delivery address, contact phone and fax numbers, together with Credit/Debit card details will be required. Credit cards are accepted subject to a 2% surcharge.  No surcharge on Switch,  Delta or Solo Debit cards. If you prefer not to send your card details via e-mail we will gladly call you back the next day to take these details.

For larger quantities and Computer Trade discounts please call us on 0118 988 7300 or e-mail us with full contact details . If you already hold an account with AVD the goods will be dispatched the same day. New trade account applications can also be dispatched the same day provided a suitable Debit / Credit card can be quoted.
