Master View Plus
4 Port Classic KVM Switch
CS-124A

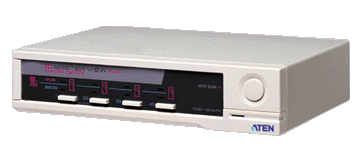

CS-124A KVM
The MasterView CS-124A KVM Switch are control units that allow access to four computer systems from a single console (keyboard, monitor and mouse). There are three convenient methods to access the connected computers: with the Push Button Selection Switches located on the front of the unit; entering Hot Key combinations from the keyboard, and with an optional Footswitch ( 2X-001 or 2X-002 ).  Unit can be Rackmounted using optional Rack panel 2X-007



  • Cascadable to 3 levels
  • Supports Microsoft Intellimouse, Logitech Mouseman, First MousePS/2 Mouse and MS Mouse
  • Keyboard and Mouse Emulation for Error Free Booting
  • Caps Lock, Num Lock and Scroll Lock states are saved and restored when Switching
  • Supports 1920 x 1440 Resolution
  • Easy to Install - No Software required, Standard cables to connect to the Computer are included
  • Easy to operate - Computer selection via Push Button Switch or Hot Keys - Auto scan function to monitor computer operation
  • Compatible with all operating Platforms
  • LED Display For Easy Status Monitoring
  • Saves time, space, power and equipment costs
  • Supports DDC2B (Display Data Channel)
  • Non powered

Features
Function
Specification
PC Connection Direct 4

Daisy Chain
 64
Port Selection Push Button / Hot Keys / Footswitch (optional)
LEDs Selected 4

On LIne
 4
Emulation Keyboard PS/2 and PC/AT
  Mouse PS/2 and Serial
Console Connectors Keyboard 1 x 6 pin mini-DIN Female (PS/2)-Console
  Mouse 1 x 6 pin mini-DIN Female (PS/2)-Console
  Video 1 HDB-15 Female (Std. VGA/SVGA)-Console
CPU port Connectors
 Keyboard
 4 x 6 pin mini DIN Female

Mouse
 4 x 6 pin mini DIN Female
  Monitor 4 x HDB-15 Male (Std. VGA/SVGA)
VGA Resolution 1920 x 1440 (Max.); DDC2B
Power consumption
 DC 9V 800mW (Max)
Scan Interval 3, 5, 10, 15, 20, 30, 40, 60 sec.
Housing Plastic / Metal
Weight 1200 g
Cable Requirement 2L-1001P (PS/2; 1.8 m) / 2L-1003P (PS/2; 3 m)
Dimensions 224 x 132 x 52 mm (L x W x H)

Street Price £114.00

All prices quoted on this web site are Estimated Street Prices for end-users and exclude Delivery & VAT.

Most items are in stock for next day delivery. Please fax through orders to 0118 988 7301 or e-mail us with your requirements , in either case full contact details such as delivery address, contact phone and fax numbers, together with Credit/Debit card details will be required. Credit cards are accepted subject to a 2% surcharge.  No surcharge on Switch,  Delta or Solo Debit cards. If you prefer not to send your card details via e-mail we will gladly call you back the next day to take these details.

For larger quantities and Computer Trade discounts please call us on 0118 988 7300 or e-mail us with full contact details . If you already hold an account with AVD the goods will be dispatched the same day. New trade account applications can also be dispatched the same day provided a suitable Debit / Credit card can be quoted.
