Console Extender
CE-250
CE-250

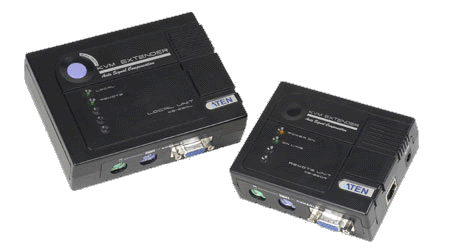

The MasterView CE-250 Console Extender uses a transmitter (CE-250L) and a remote receiver (CE-250R) connected by Category 5 STP cable to extend the distance between the PC and a remote monitor up to 150m (500').

The CE-250 Console Extender system is ideal for factory and construction sites, or any installation where the console needs to reside in a harsh setting, but you want the system equipment kept in an environmentally friendly location. The Extender system is also useful for control and security purposes, where you can have the system unit in a secure area at the same time that you operate the unit in an area which is convenient.

It is easy to install and operate because of the Auto Signal Compensation (ASC) technology, which senses the distance and adjusts the signal levels accordingly so there is no need to do any dip switch setting.



  • Uses Category 5 Ethernet cable, Easy installation, economical and reliable
  • Built in ASIC for greater reliability and compatibility
  • Auto Signal Compensation (ASC)
  • Dual Console operation - control your system from both the local and remote PS/2 Keyboard , PS/2 Mouse and monitor console
  • Push button selection of the active console
  • Plug and Play operation - just plug in the cables
  • Suitable for PS/2 Computers
  • High resolution video up to 1280 x 1024
  • Local and Remote consoles
  • Long distance transmission up to 150m (500')

Features
Function
CE-250L
CE-250R
Connections Keyboard 6 pin mini DIN Female
6 pin mini DIN Female

Mouse
 6 pin mini DIN Female 6 pin mini DIN Female

Monitor
 15 pin HDB Female  15 pin HDB Female

Unit to Unit
 RJ45 - Category 5 Ethernet
Switches
 1 Auto mode - momentary switch

LEDs 1 Local
1 Remote
1 Status
1 OnLine

Cable Distance Category 5 STP up to 150m (500ft)
Category 5 STP up to 150m (500ft)
Signal Type
 VGA / SVGA / Multisync
VGA / SVGA / Multisync
VGA Resolution 1280 x 1024 DDC, DDC2, DDC2B1280 x 1024
Power consumption
 AC 9V 2.7W (Max)
AC 9V 2.7W (Max)
Housing MetalMetal
Weight 300 g220 g
Dimensions 100 x 80 x 35 mm (L x W x H)100 x 80 x 35 mm

Street Price £195.00 SPECIAL OFFER Now £115.00
(System price above includes both Local and Remote units)
