2 Port PC Sharing Switch

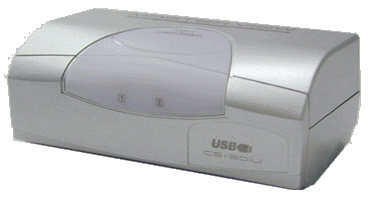

CS-201U
CS-201u

The CS-201U has USB style connectors and implements a 'Two user - single tasking' environment using the quick and convenient USB bus technology. With the CS-201U, USB keyboards and mice take the place of conventional (PS/2) keyboards and mice and the console accesses the computer over a USB connection.
  • USB Based Dual User Single tasking
  • Two sets of USB Keyboard, Monitor and Mouse Console Access a single computer or MAC
  • Share Programs, Files, Data and resources
  • Two users can work concurrently on the same project
  • Pushbutton Switch locks Console 2 out of sensitive data
  • Easy to install - No software required - Connecting cables is all it takes
  • LED Display For Easy Status Monitoring
  • Hot Pluggable


Features
Function Specification
No of users 2
Console connection mode
 Simultaneous / Private
Shared Functions N/a
Function Keys
 N/a
Console
Connectors
 Keyboard 2 x A Type USB Sockets
Mouse 2 x A Type USB Sockets
Monitor 2 x 15 pin HDB Female
CPU Port
Connectors  		 Keyboard 1 x B Type USB Socket
Mouse
Video 15 pin HDB Male
 LED's Manual Select 2
Input
 N/a
VGA Resolution 1920 x 1440 (Max.); DDC2B
Power Consumption 840mW (Max.)
Housing Plastic
Weight 150 g
Dimensions 120 x 67 x 44 mm (L x W x H)
Street Price £95  SPECIAL OFFER Now £40.00

All prices quoted on this web site are Estimated Street Prices for end-users and exclude Delivery & VAT.

Most items are in stock for next day delivery. Please fax through orders to 0118 988 7301 or e-mail us with your requirements , in either case full contact details such as delivery address, contact phone and fax numbers, together with Credit/Debit card details will be required. Credit cards are accepted subject to a 2% surcharge.  No surcharge on Switch,  Delta or Solo Debit cards. If you prefer not to send your card details via e-mail we will gladly call you back the next day to take these details.

For larger quantities and Computer Trade discounts please call us on 0118 988 7300 or e-mail us with full contact details . If you already hold an account with AVD the goods will be dispatched the same day. New trade account applications can also be dispatched the same day provided a suitable Debit / Credit card can be quoted.
