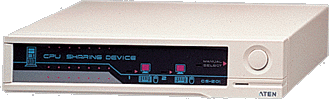

2 Port PC Sharing Switch
CS-221
CS-221

The CS-221 has PS/2 style connectors for the keyboard and mouse ports.

  • VGA, SVGA Multisync Monitor Split Function
  • Auto / Manual Mode; Selectable
  • Auto Scan / Auto Switch is fully transparent to the user
  • Private mode for Privileged operating
  • Screen saver for Monitor protection
  • Easy to install - No software required - Connecting cables is all it takes
  • LED Display For Easy Status Monitoring
  • Hot Pluggable


Features
Function Specification
No of users 2
Console connection mode
 Private
Shared Functions Keyboard & Mouse
Function Keys
 Auto / Manual Selection
Console
Connectors
 Keyboard 2 x 6 pin mini-DIN Female
Mouse 2 x 6 pin mini-DIN Female
Monitor 2 x 15 pin HDB Male / Female
CPU Port
Connectors  		 Keyboard 1 x 6 pin mini-DIN Female
Mouse 1 x 6 pin mini-DIN Female
Video 15 pin HDB Male
 LED's Manual Select 1
Input
 2
VGA Resolution 1024 x 768
Power Consumption AC 9V 1.8W (Max)
Housing Plastic /  Metal
Weight 2650 g
Dimensions 224 x 152 x 52 mm (L x W x H)
Street Price £105
