2 Port PC Sharing Switch
CS-231
CS-231

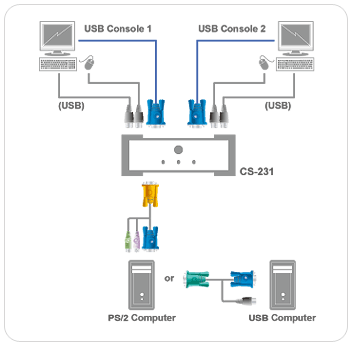

The CS231 is a powerful, micro-processor controlled computer sharing device. It is a multi-user, single-tasking device that enables two users to share the use of a single computer - each from their own consoles (monitor, keyboard, and mouse).The CS231 supports USB consoles and both PS/2 and USB computers
  • Single computer is shared by two USB consoles
  • Supports USB and PS/2 computers
  • Multiplatform Support (Windows,Mac,Unix and Linux)
  • Manual or Auto console selection
  • Control the system with Hotkeys
  • Firmware upgradable
  • Private Mode for a privileged user
  • Screen Saver function
  • Choose from four Timeout settings
  • Supports VGA, SVGA, and MultiSync monitors
  • Device Status displayed in OSD message
  • No software required


Features
Function Specification
 No of users 2
Console connection mode
 Private
Shared Functions Keyboard & Mouse
Function Keys
 Auto / Manual Selection
Console
Connectors
 Keyboard 2 x USB Type A Female (White)
Mouse 2 x USB Type A Female (White)
Monitor 2 x HDB-15 Female (Blue)
Switches
 Mode Selection
 1 x Pushbutton
Reset
 1 x Semi-recessed Pushbutton
DIP
 1 x 4 pin
CPU Port Connectors   1 x SPHD-15/18 Female (Green)
 LED's Mode 1 (Orange)
Selected
 2 (Green)
Video Resolution 1920 x 1440@60Hz,DDC2B
Timeout Settings
 5, 60, 125, 255 Seconds
Power Consumption AC 5.3V 2.2W (Max)
Housing Metal
Weight 560 g
Dimensions 143 x 87 x 55 mm (L x W x H)

Package Contents
  •  1x Computer Sharing Device
  •  1x USB KVM Cable
  •  1x Power Adapter
  •  1x Firmware Upgrade Cable
  •  1x DIP Switch Sticker
  •  1x User Manual
  •  1x Quick Start Guide
CS-231
Street Price £115  SPECIAL OFFER Now £85.00
