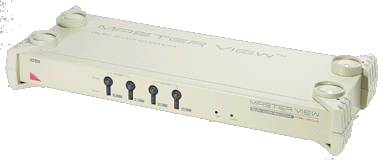

Master View Pro - 4 Port SUN KVM Switch
CS-1804

CS-1804

Allows users to access multiple SUN systems using a single console (keyboard, monitor and mouse). The CS-1804 can control up to four systems. Units can be cascaded to three levels controlling up to 64 SUN systems - all from one console. Systems can be quickly accessed using the push button port selection switches or bu OSD (On Screen Display) menu. The CS-1804 provides keyboard and mouse emulation for all attached computers - even when they are switched away.


If power is interrupted, the systems non-volatile memory help restore the systems established settings and avoids the loss of critical keyboard and mouse communication links.

  • Control up to 64 SUN systems from one console.
  • Reduce the need for expensive monitors.
  • OSD user interface lets you select the server from a single screen.
  • Programmable scanning, naming, and security functions.
  • Password Security: restrict system access through the switch.
  • Mouse Control, execute commands via mouse or keyboard.
  • Programmable scanning: Set system view time and selection pattern.

Function Specification
SUN Connection Direct 4
Daisy Chain 64
Port Selection Pushbutton Switch / OSD
LEDs Selected 4
On Line 4
Power 1
Console Section Keyboard/Mouse

1 * 8 pin mini-DIN Femle
2 * PS/2
Video

1*HD13W3, Female
1*HDB-15, Female
SUN Section Keyboard/Mouse/Video 4 x DB-25, Female
VGA Resolution 1920 x 1440 (Max.); DDC2B
Power Consumption DC 9V ; 3.15W(Max)
Scan Interval 3, 5, 10, 15, 20, 30, 40, 60 sec.
Cable Type 2L-1302S (1.8m) or 2L-1302M (1.8m)
Housing Metal
Dimensions 433.5 x 153 x 44 mm (L x W x H) [19" 1U]

Street Price £TBA
