Master View Plus
2 Port USB KVM Switch
ACS-1712

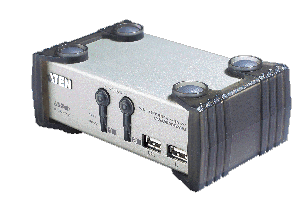

ACS-1712 USB KVM
The ATEN ACS-1712 USB KVM Switch are dual function units that combines a two port KVM Switch and two port USB hub. Suitable for either PC's or Mac's. These allow access to two computer systems from a single console (USB keyboard, monitor and USB mouse). The connections to the attached CPU's is handled by a single USB cable and Video cable. The USB hub provides for sharing of peripheral devices (printers, scanners, modems etc) between the two connected computers on a one computer at a time basis. With the independant switching feature it is possible to access and control one computer while printing from a second computer at the same time.



  • A single USB console controls 2 computers using USB connections
  • Both computers can share 2 USB peripheral devices
  • Stylish compact shape
  • Computer Selection via hotkeys, front panel switches or OSD (On Screen Display)
  • USB port selection via hotkeys or OSD
  • Independant switching of KVM and peripheral USB ports
  • Fully compliant with the USB v1.1 specification
  • Supports transfer rates of 1.5/12 Mbps
  • OSD and LED display for easy status monitoring
  • Auto Scan mode for monitoring all computers
  • Complete Keyboard and mouse emulation for error free booting
  • Eliminates driver conflict between the console's mouse and the computers' configuration
  • Control a MAC and a PC at the same time
  • Supports 1920 x 1440 Resolution
  • Supports both Wintel and MAC host systems (USB enabled)
  • Win98SE, WinXP, WinME, Win2000, MAC OS8.5 or higher
  • Hot Pluggable - Add or remove computers without powering down the switch
  • Supports DDC2B (Display Data Channel)

Features
Function
Specification
PC Connection 2
Port Selection (KVM)
 Push Button , Hot Key, OSD
Port Selection (USB Devices)
 Hot Key, OSD
Emulation (Keyboard / Mouse)
 USB
LEDs
 Selected 2
On LIne
 2
Console Connectors   Keyboard USB A
Mouse USB A
Video 1 HDB-15 Female (Std. VGA/SVGA)-Console

Peripherals
 2 x USB A
CPU port Connectors
 Keyboard & Mouse
 2 x USB B
  Monitor 2 HDB-15 Male (Std. VGA/SVGA)
VGA Resolution 1920 x 1440 (Max.); DDC2B
Power Consumption
 DC 5V 0.85W (Max)
Scan Interval 3, 5, 10, 15, 20, 30, 40, 60 sec.
Housing Metal
Weight 490 g
Cable Requirement 2L-5001U (1.2 m) / 2L-5002U ( 1.8 m) / 2L-5003U (3m)
Dimensions 130 x 74.5 x 42 mm (L x W x H)

Street Price £132.00

All prices quoted on this web site are Estimated Street Prices for end-users and exclude Delivery & VAT.

Most items are in stock for next day delivery. Please fax through orders to 0118 988 7301 or e-mail us with your requirements , in either case full contact details such as delivery address, contact phone and fax numbers, together with Credit/Debit card details will be required. Credit cards are accepted subject to a 2% surcharge.  No surcharge on Switch,  Delta or Solo Debit cards. If you prefer not to send your card details via e-mail we will gladly call you back the next day to take these details.

For larger quantities and Computer Trade discounts please call us on 0118 988 7300 or e-mail us with full contact details . If you already hold an account with AVD the goods will be dispatched the same day. New trade account applications can also be dispatched the same day provided a suitable Debit / Credit card can be quoted.
