Master View Plus
4 Port USB KVM Switch (v2.0)
ACS-1724
ACS-1724 USB KVM
The ATEN ACS-1724 USBv2.0 KVM Switch are dual function units that combines a four port KVM Switch and two port USBv2.0 hub. Suitable for either PC's or Mac's. These allow access to four computer systems from a single console (USB keyboard, monitor and USB mouse). The connections to the attached CPU's is handled by a single USB cable and Video cable. The USB hub provides for sharing of peripheral devices (printers, scanners, modems etc) between the four connected computers on a one computer at a time basis.



  • A single USB console controls 4 computers using USB v2.0 connections
  • Both computers can share 2 USB peripheral devices using USB v2.0
  • Stylish compact shape
  • Computer Selection via hotkeys, push switches
  • Fully compliant with the USB v2.0 specification
  • Fully Backward compatible to USB v1.1
  • Supports transfer rates of 1.5/12 / 480 Mbps
  • OSD and LED display for easy status monitoring
  • LED overcurrent detection for USB ports
  • Auto Scan mode for monitoring all computers
  • Complete Keyboard and mouse emulation for error free booting
  • Eliminates driver conflict between the console's mouse and the computers' configuration
  • Control a MAC and a PC at the same time
  • Supports 1920 x 1440 Resolution
  • Supports both Wintel and MAC host systems (USB enabled)
  • Win98SE, WinXP, WinME, Win2000, MAC OS8.5 or higher
  • Hot Pluggable
  • Supports DDC2B (Display Data Channel)

Features
Function
Specification
PC Connection 4
Port Selection (KVM)
Push Button , Hot Key, OSD
Emulation (Keyboard / Mouse)
USB
LEDs
Selected 4 Green
On LIne
4 Green / Amber (Overcurrent)
Console Connectors   Keyboard USB A
Mouse USB A
Video 1 HDB-15 Female (Std. VGA/SVGA)-Console

Peripherals
2 x USB A
CPU port Connectors
Keyboard & Mouse
4 x USB B
  Monitor 4 HDB-15 Male (Std. VGA/SVGA)
VGA Resolution 1920 x 1440 (Max.); DDC2B
Power Consumption
DC 5V 400mW (Max)
Scan Interval 5 sec.
Housing Plastic
Weight 390 g
Cable Requirement 2L-5001U (1.2 m) / 2L-5002U ( 1.8 m) / 2L-5003U (3m)
Dimensions 70 x 195 x 43.5 mm (L x W x H)

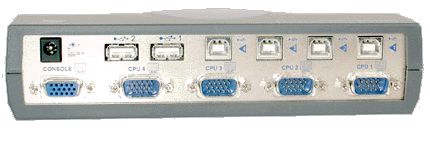

Rear View
ACS-1724 Connections
Street Price £172.00

All prices quoted on this web site are Estimated Street Prices for end-users and exclude Delivery & VAT.


Most items are in stock for next day delivery. Please fax through orders to 0118 988 7301 or e-mail us with your requirements , in either case full contact details such as delivery address, contact phone and fax numbers, together with Credit/Debit card details will be required. Credit cards are accepted subject to a 2% surcharge.  No surcharge on Switch,  Delta or Solo Debit cards. If you prefer not to send your card details via e-mail we will gladly call you back the next day to take these details.

For larger quantities and Computer Trade discounts please call us on 0118 988 7300 or e-mail us with full contact details . If you already hold an account with AVD the goods will be dispatched the same day. New trade account applications can also be dispatched the same day provided a suitable Debit / Credit card can be quoted.
