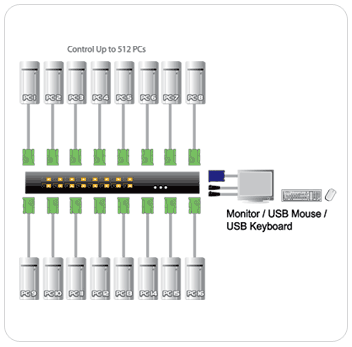

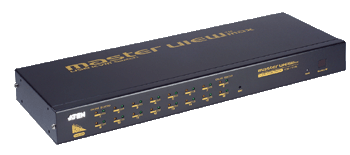

Rear View 8 Port (CS-1708) shown	16 Port KVM Switch (CS-1716) 16 Port High Density USB KVM Switch The CS1716 is a KVM Switch with built-in USB. It can control 16 computers with USB ports via the USB. Moreover, it allows connections of up to 512 servers for central control via a built-in daisy chain port. Features Single USB console controls up to 16 computers Supports multimedia USB keyboards (PC, Mac and Sun). Firmware upgrades to all the chained KVM switches at the same time via the daisy chain cable.   Buzzer On/Off via hotkey and OSD.   Broadcast Mode: Operations simultaneously performed on all selected computers, software installation and upgrading, system wide shutdown....etc.   Auto-sensing of station's position on daisy chained installations¡Vno need for manual DIP switch setting - front panel LED indicates station's position.   Computer selection via hotkeys and OSD.   Superior video quality-up to 2048 x 1536; DDC2B.   ATEN USB ASIC inside.   Rack mountable in 19" system rack  Daisy chain up to 31 additional units - Control up to 512 computers from a single console. Multiplatform support: compatible with all operation platforms PC (Windows,Linux and most others), Mac and Sun.   Firmware upgradable Functions Package Contents 1x 16-Port USB KVM Switch  2x USB KVM Cables (1.8m)   1x Firmware Upgrade Cable   1x Power Adapter   1x Rack Mount Kit   1x User Manual   1x Quick Start Guide Specifications CS1716 PC Connection Direct 16 Max 512 (via Daisy Chain ) Console Connections Keyboard 1 x USB Type A Female (White) Video 1 x HDB-15 Female (Blue) Mouse 1 x USB Type A Female (White) PC Selection Hotkey, OSD KVM Connections Keyboard / Video / Mouse 16 x SPHD-15 Female (Yellow) Daisy Chain In 1 x DB-25 Female (Black) Out 1 x DB-25 Male (Black) Other Connections F/W upgrade 1 x RJ-11 (F) Black Power 1 x DC Jack (Black) LEDs On Line 16 (Orange) Selected 16 (Green) Station ID 2 x 7 Segment (Orange) Power 1 (Blue) Enclosure Metal Weight 2960g Dimension(LxWxH) 433x160x44mm Keyboard / Mouse Emulation USB Scan Interval 1 ~ 255 Seconds Resolution 2048 x 1536, DDC2B Operation Temperature 0° ~ 50° Storage Temperature -20° ~ 60° Humidity 0 ~ 80% RH, NC
Street Price £862 All prices quoted on this web site are Estimated Street Prices for end-users and exclude Delivery & VAT. Most items are in stock for next day delivery. Please fax through orders to 0118 988 7301 or e-mail us with your requirements , in either case full contact details such as delivery address, contact phone and fax numbers, together with Credit/Debit card details will be required. Credit cards are accepted subject to a 2% surcharge.  No surcharge on Switch,  Delta or Solo Debit cards. If you prefer not to send your card details via e-mail we will gladly call you back the next day to take these details. For larger quantities and Computer Trade discounts please call us on 0118 988 7300 or e-mail us with full contact details . If you already hold an account with AVD the goods will be dispatched the same day. New trade account applications can also be dispatched the same day provided a suitable Debit / Credit card can be quoted.
ALTUSEN and the ALTUSEN logo are registered trademarks of ATEN International Co. Ltd. All other trademarks belong to the respective owners.
