Master View
2 Port Desktop USB KVM Switch
CS-1732A
CS-1732
The MasterView KVMP (Keyboard, Video, Mouse and Peripheral) Series integrates a fully functioning USB hub into the KVM switch thereby centralizing control of PC and peripheral functions from a single console.

The new KVMP multi-peripheral sharing technology is changing the way ATEN customers utilize the power of their PC.


Features

  • Dual interface - supports computers with PS/2 or USB keyboards and mice Supports PC, Linux, FreeBSD, Mac, and Sun systems
  • One console controls 2 computers and 2 additional USB devices
  • Bidirectional switching and flexible interoperability; switch permits independent PC, independent peripheral, and independent audio function, regardless of KVM switch focus
  • Buzzer ON/OFF via hotkey
  • Complete keyboard and mouse emulation for error free booting and realtime switching
  • Easy installation - no software required
  • Superior video quality; 2048 x 1536; DDC2B
  • A life time of fireware upgrading
  • Audio enabled

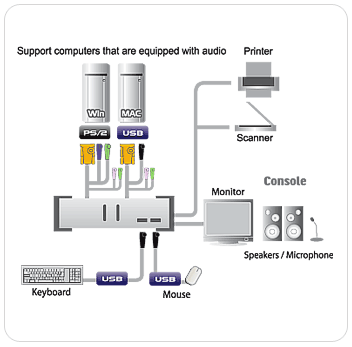

Function

CS-1732
Package Contents
  • 1 CS-1732A KVM Switch
  • 2 CS Custom KVM Cables
  • 1 Firmware Upgrade Cable
  • 1 User Manual
  • 1 Quick Start Guide

Specifications
Computer Connections 2
Computer Port Selection Hotkeys, Put buttons
USB Port/Audio Port Selection Hotkey
Connectors Console Keyboard 1 x USB Type A Female (White)
Video 1 x HDB 15 Female
Mouse 1 x USB Type A Female (White)
1 x Microphone Jack Female (Pink)
Computers KVM DATA 2 x SPHD15 Female (Yellow)
Audio 2 x Earphone Jack Female (Green) 2 x Microphone Jack Female (Pink)
USB Hub 2 x USB Type A Female (Black)
Firmware upgrade 1 x RJ11 soclcet
Power Adpater Jack 1 x DC Jack (Spare)
Switch Firmware Upgrade 1 x Slide Switch
LEDs On Line/ Selected 2 (Orange)
USB Link 2 (Orange)
VGA Resolution 2048 x1536
Scan Interval 1~99 seconds (5 seconds default )
Power Consumptior DC5V, 1.2W
Operating temperature 0˚C~50˚C
Storage temperature -20˚C~60˚C
Housing Metal
Weight 490g
Dimensions ( L x W x H ) 142 x 85 x 55mm
Street Price £70.00 SPECIAL OFFER Now £60.00

All prices quoted on this web site are Estimated Street Prices for end-users and exclude Delivery & VAT.

Most items are in stock for next day delivery. Please fax through orders to 0118 988 7301 or e-mail us with your requirements , in either case full contact details such as delivery address, contact phone and fax numbers, together with Credit/Debit card details will be required. Credit cards are accepted subject to a 2% surcharge.  No surcharge on Switch,  Delta or Solo Debit cards. If you prefer not to send your card details via e-mail we will gladly call you back the next day to take these details.

For larger quantities and Computer Trade discounts please call us on 0118 988 7300 or e-mail us with full contact details . If you already hold an account with AVD the goods will be dispatched the same day. New trade account applications can also be dispatched the same day provided a suitable Debit / Credit card can be quoted.
