Master View
4 Port Desktop USB KVM Switch
CS-1734A
CS-1734
The MasterView KVMP (Keyboard, Video, Mouse and Peripheral) Series integrates a fully functioning USB hub into the KVM switch thereby centralizing control of PC and peripheral functions from a single console.

The new KVMP multi-peripheral sharing technology is changing the way ATEN customers utilize the power of their PC.


Features

  • 2 Port USB hub
  • Dual interface - supports computers with PS/2 or USB keyboards and mice Supports PC, Linux, FreeBSD, Mac, and Sun systems
  • One console controls 4 computers and 2 additional USB devices
  • Bidirectional switching and flexible interoperability; switch permits independent PC, independent peripheral, and independent audio function, regardless of KVM switch focus
  • Buzzer ON/OFF via hotkey
  • Complete keyboard and mouse emulation for error free booting and realtime switching
  • Easy installation - no software required
  • Superior video quality; 2048 x 1536; DDC2B
  • A life time of fireware upgrading
  • Audio enabled

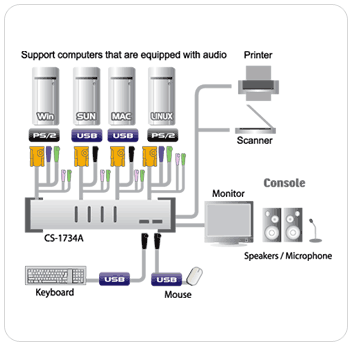

Function

CS-1734
Package Contents
  • 1 CS-1734A KVM Switch
  • 4 CS Custom KVM Cables
  • 1 Firmware Upgrade Cable
  • 1 User Manual
  • 1 Quick Start Guide

Specifications
Computer Connections 4
Computer Port Selection Hotkeys, Push buttons
USB Port/Audio Port Selection Hotkey
Connectors Console Keyboard 1 x USB Type A Female (White)
Video 1 x HDB 15 Female
Mouse 1 x USB Type A Female (White)
1 x Microphone Jack Female (Pink)
Computers KVM DATA 4 x SPHD15 Female (Yellow)
Audio 4 x Earphone Jack Female (Green) 4 x Microphone Jack Female (Pink)
USB Hub 2 x USB Type A Female (Black)
Firmware upgrade 1 x RJ11 soclcet
Power Adpater Jack 1 x DC Jack (Spare)
Switch Firmware Upgrade 1 x Slide Switch
LEDs On Line/ Selected 4 (Orange)
USB Link 4 (Orange)
VGA Resolution 2048 x1536
Scan Interval 1~99 seconds (5 seconds default )
Power Consumption DC5V, 1.2W
Operating temperature 0˚C~50˚C
Storage temperature -20˚C~60˚C
Housing Metal
Weight 700g
Dimensions ( L x W x H ) 210 x 85 x 55mm
Street Price £99.00 SPECIAL OFFER Now £88.00
