Master View
2 Port DVI USB KVM Switch
CS-1762A
CS-1762

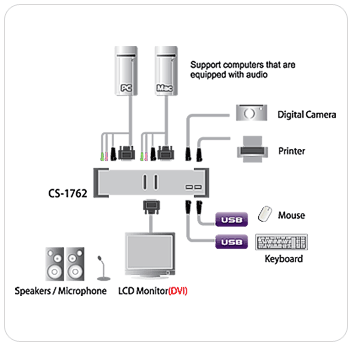

The ATEN 2 port (CS-1762) audio enabled DVI KVM Switch is designed for the multiple DVI enabled PC and Mac owner, the DVI friendly SOHO environment and the technology enthusiast. This unique KVM switch permits 1 DVI flat panel display and 1 PC or Macintosh keyboard and mouse combination to effortlessly control 2 (CS-1762) DVI enabled computers without the distortion associated with analog to digital conversion. This space saving DVI KVM switch utilizes front panel push buttons or convenient Hotkeys for switching between computers and is fully audio enabled for maximum benefit to your DVI work station at a minimal cost to your desktop space.

The new KVMP multi-peripheral sharing technology is changing the way ATEN customers utilize the power of their PC.


Features

  • 2 Port USB hub
  • Control two computers from one DVI monitor, one USB keyboard, one USB mouse console
  • Computer selection via front panel switches, and Hotkeys
  • Supports transfer rates of 1.5/12 Mbps
  • Supports Windows, and Mac host systems
  • One console controls 2 computers and 2 additional USB devices
  • Bidirectional switching and flexible interoperability; switch permits independent PC, independent peripheral, and independent audio function, regardless of KVM switch focus
  • Buzzer ON/OFF via hotkey
  • Complete keyboard and mouse emulation for error free booting and realtime switching
  • Easy installation - no software required
  • Please note:This KVM supports digital resolutions up to 1600 x 1200 for all displays 19in or smaller;max resolution for displays larger than 19in may only be 1280 x 1024
  • Fully compliant with the DVI-Digital and DVI-analog specification
  • A life time of fireware upgrading
  • Audio enabled


Function

CS-1762
Package Contents
  • 1 CS-1762A DVI KVM Switch
  • 2 CS Custom KVM Cables
  • 1 Firmware Upgrade Cable
  • 1 Power Adaptor
  • 1 User Manual
  • 1 Quick Start Guide

Specifications
Computer Connections 2
Computer Port Selection Hotkeys, Push buttons
USB Port/Audio Port Selection Hotkey
Connectors Console Keyboard 1 x USB Type A Female (White)
Video 1 x DVI Female
Mouse 1 x USB Type A Female (White)
Audio
 1 x Microphone Jack Female (Pink)
1 x Earphone Jack Female (Green)
Computers KVM Data
 2 x DVI Female (White)
2 x USB Type B Female (White)
Audio
2 x Earphone Jack Female (Green)
2 x Microphone Jack (Pink)
USB Hub 2 x USB Type A Female (Black)
Firmware upgrade 1 x Earphone Jack Female
Power Adpater Jack 1 x DC Jack
LEDs On Line/ Selected 2 (Orange)
USB Link 2 (Green)
VGA Resolution 1600 x 1200
Scan Interval 1~99 seconds (5 seconds default )
Power Consumption DC5V, 9.3W
Operating temperature 0˚C~50˚C
Storage temperature -20˚C~60˚C
Housing Metal
Weight 800g
Dimensions ( L x W x H ) 210 x 85 x 55mm
Street Price £132.00 SPECIAL OFFER Now £99.00
