ATEN
2 Port USB KVMPE Switch
CS-1772A
CS-1772
The ATEN 2 port (CS-1772) is an all-in-one, multiplatform KVM, USB and Ethernet control device. The CS-1772 was designed to control 2 computers with one keyboard, mouse and video. It also includes a 2 port USB 2.0 hub for fast peripheral device access and a 3 port 10/100Mbps Ethernet switch hub for connecting your computers to a network. CS-1772 features stereo and audio support and can be controlled via pushbutton switch or keyboard hotkeys

The new KVMPE multi-peripheral sharing technology is changing the way ATEN customers utilize the power of their PC.


Features

  • Complete USB 2.0 KVME Switch with Ethernet Swtich Hub/USB Hub
  • Three auto-sensing dual speed ports (Ethernet/Fast Ethernet) plug-and-play enabled; hub complies with IEEE802.3/IEEE802.3u Standard
  • Control two computers from one VGA monitor, one USB keyboard, one USB mouse console
  • Computer selection via front panel switches, and Hotkeys
  • Supports Multiple platforms:PC(Windows, Linux and most others), Mac, Sun
  • One console controls 2 computers and 2 additional USB devices
  • Permits independent switching of KVM, USB and audio focus between all computers
  • Buzzer ON/OFF via hotkey
  • Complete keyboard and mouse emulation for error free booting and realtime switching
  • Easy installation - no software required
  • A life time of fireware upgrading
  • Audio enabled

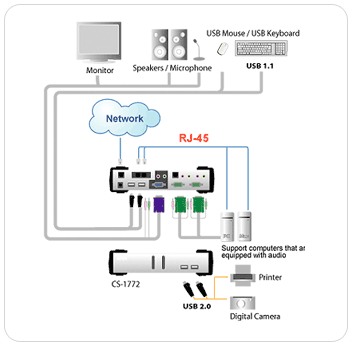

Function

CS-1772
Package Contents
  • 1 CS-1772A USB KVMPE Switch
  • 2 CS Custom KVM Cables
  • 1 Firmware Upgrade Cable
  • 1 Power Adaptor
  • 1 User Manual
  • 1 Quick Start Guide

Specifications
Computer Connections 2
Computer Port Selection Hotkeys, Push buttons
USB Port/Audio Port Selection Hotkey
Connectors Console Keyboard 1 x USB Type A Female
Video 1 x HDB15 Female
Mouse 1 x USB Type A Female
Audio
 1 x Microphone Jack Female (Pink)
1 x Speaker Jack Female (Green)
Computers KVM Data
 2 x SPHD-15 Female
Audio
2 x Speaker Jack Female
2 x Microphone Jack
USB Hub 2 x USB Type A Female (Black)
Ethernet Hub
 3 x RJ-45 Female
Firmware upgrade 1 x RJ-11 Female
Power Adpater Jack 1 x DC Jack
LEDs On Line/ Selected 2 (Orange)
USB Link 2 (Green)
10/100 Mbps
 3 (Green)
Link
 3 (Green)
VGA Resolution 2048 x 1536, DDC2B
Scan Interval 1~99 seconds (5 seconds default )
Power Consumption DC5.3V, 4.5W, 900mA
Operating temperature 0˚C~50˚C
Storage temperature -20˚C~60˚C
Housing Metal
Weight 710g
Dimensions ( L x W x H ) 210 x 85 x 55mm
Street Price £125.00 SPECIAL OFFER Now £99.00

All prices quoted on this web site are Estimated Street Prices for end-users and exclude Delivery & VAT.

Most items are in stock for next day delivery. Please fax through orders to 0118 988 7301 or e-mail us with your requirements , in either case full contact details such as delivery address, contact phone and fax numbers, together with Credit/Debit card details will be required. Credit cards are accepted subject to a 2% surcharge.  No surcharge on Switch,  Delta or Solo Debit cards. If you prefer not to send your card details via e-mail we will gladly call you back the next day to take these details.

For larger quantities and Computer Trade discounts please call us on 0118 988 7300 or e-mail us with full contact details . If you already hold an account with AVD the goods will be dispatched the same day. New trade account applications can also be dispatched the same day provided a suitable Debit / Credit card can be quoted.
