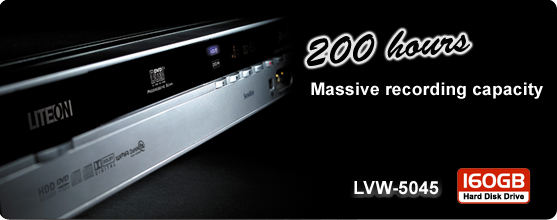

LiteOn DVD Recorder with Hard Disk LVW-5045






Features Specification Download







Recording Features Digital media formats supported
Built-in 160GB HDD, DVD+RW / DVD+R, DVD-R / DVD-RW, CD-R / CD-RW
Recording quality and time
Built-in HDD HQ: 33hrs / SP: 66hrs / LP: 99hrs / EP: 132hrs / SLP: 198hrs
DVD 4.7G HQ: 1hr / SP: 2hrs / LP:3hrs / EP: 4hrs / SLP:6hrs
CD 700MB SVCD: 34mins / VCD: 68mins / Audio CD: 70mins
"Just Fit" disc recording Yes
DVD disc recording format DVD+VR
Dolby Digital Recording Yes
ShowView / VIDEO Plus+ timer programming system Yes (16 sets of programming)
NICAM Yes
VPS / PDC Yes
One-touch recording Yes
DV Control Yes
Time Shift (Pause live TV) Yes
Record & Play (Watch the beginning while recording the end) Yes
One-touch copy Yes (HDD to DVD, DVD to HDD)


Playback Features Digital media formats supported
DVD-Video, DVD+R / DVD+RW, DVD-R / DVD-RW, CD-R / CD-RW, SVCD, VCD, Audio CD
VOB / MPG / DAT Yes
MP3, WMA, WAV Yes
JPEG, BMP Yes
Progressive scan Yes (576p)
Editing Features Title name editing Yes
Title editing Erase / Protect / Overwrite /Split / Merge / Set thumbnail
Chapter editing Insert chapter mark / Erase chapter mark / Hide chapter / Show chapter
Chapter mark insertion Auto and manual
General Features Graphical Easy Guiderâ„¢ menu Yes
Channel editing Yes
Slide show Yes
Content browser Yes (thumbnail view, text view)
Tuner TV system PAL ( PAL-I / I, PAL-B / G, or SECAM-L / L)


Front connections Audio / Video input 1
DV input (IEEE 1394) 1
S-Video input 1


Rear connections SCART input 1 (CVBS, RGB in, Decorder)
SCART output 1 (CVBS, RGB, S-VIDEO out)
Audio / Video output 1
Component output 1 (Y, Pb, Pr)
Digital audio output 2 (coaxial, optical)
RF input 1
RF output 1


Others Power supply AC 220~240V 50Hz
Power consumption 50W
Dimension (mm) W430 x H66 x D316
Weight Approx. 4.5kg

Notes
  • The specifications and design are subject to change without notice.
  • ShowView / VIDEO Plus+ is a registered trademark of Gemstar Development Corporation.
  • Easy Guider and AllWrite are registered trademarks of Lite-On IT Corp.
  • Dolby and the double-D symbol are registered trademarks of Dolby Laboratories.
  • DV Link only supports compatible DVs.





© 2006 Lite-On IT Corporation All rights reserved.
