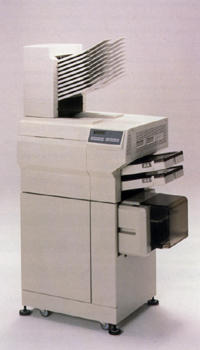

M-24

Others Driver Datasheet Specs Accessories Consumables
Ion Deposition Printer
Major features of M-24

High Speed 24 Pages per minute

High Duty 200,000 pages per month

High Reliability Preventive Maintenance Cycle 500,000 pages

High Performance

Controller INTEL i960 RISC Processor

Ion Deposition explained Paper Handling

M-24 How fast do you want ?

Rated at 32 A4 pages per minute, the M-24 is the printer of choice for demanding high volume environments. Available options include a duplex unit which prints and completes forms in one run. Its extremely short first page time of only 8 seconds, large paper trays and the optional 2000 sheet large capacity feeder combine to reduce manual intervention and waiting times to a minimum.

The M-32 can take large amounts of correspondence, envelopes and forms in its stride.









 Ion Deposition

The Ion Deposition technology enables printing on much thicker paper, such as card, labels etc up to 200g/m2. The printing process consists of long life main unit, image receptor and drum.

The drum benefits from a complex coating to give a particular hardness to help it withstand wear and tear. Ion deposition is a gentle process compared to most other printing technologies. With a very flat paper path that accepts extremely thick paper and at the same time reduces the risk of paper jams and the subsequent wear and tear on the internal components.

All of these factors combine to give a monthly duty cycle of 200,000 pages, a maintenance interval of 500,000 pages and a rated life of 12 million impressions. Which in turn gives an incredibly low cost per page.

1.Create Latent image on dielectric drum.

2.Developing with single component toner.

3.Transfer

4.Clean residual toner & erase change on drum.

5.Fix toner image by fuser unit.


1. Durable and robust drum and process protect against the sharper edge of Tag and label stock.

2 Direct writing on Image receptor drum creates clear printing of Bar codes. Optional PCMCIA emulation card has Magnum Code V and IGP.

3. Line Printer replacement with optional PCMCIA emulation of Printronix P-series Line printers.

Wide Variety of Paper Handling Capabilities
Input Standard: (2) 250 Sheet Trays
Optional: 1000 Sheet Feeder
Output Standard: 500 Sheet Stacker
Optional: 1500 Sheet Stacker*
2000 Sheet Stacker*
*Upgradeable to 5 or 10 Bin Mail Box
Wide Variety of Paper Stock Choices

(60-200g/m2 with 2000 Sheet Feeder)


Printer Specifications

Print speed Simplex 32ppm (A4)

Duplex 27 ipm (A4)

Emulation HP Laser Jet PCL5/HPGL2 PostScript (Microsoft Truelmage) with Automatic switching
(optional)
Printronix P-series Line printer / Printronix IGP, & Magnam Code-V
Engine Type Ion deposition printing technology Font 14bit-mapped fonts and 13 scaleable fonts
(optional)
35 Microsoft type outline fonts
Resolution 300 x 300 dpi Interface Centronics parallel, Serial RS232C/422
Warm up time within 60 sec Optional Interface Multiplatform Network Board
First Print Simplex less than 8 sec
Duplex less than 13 sec
Power Source 230V 50Hz
Paper Bond, color, label, card Power Consumption 1.65KVA (full configuration)
Paper Size A4, A5, Letter, Legal Noise Level 53 dbA printing
43 dbA idle
Paper Weight 60-90g/m2
60-200g/m2 with PFU3
Weight approx. 40 Kg
Paper Feed 2 trays, 250 sheets each Dimensions 610(W) x 380(D) x 395(H) mm
Paper Output 500 sheets face down
25 sheets face up
Monthly Duty Cycle 200,000 pages per month
Controller Intel i960CF 33MHz Service Life rated up to 12 million pages

All paper capacity is when using 75g/m2 paper. Specifications subject to change without notice. All trademarks mentioned above are the property of their respective makers.



Back to the Top


M-32 & Options

Model No.
M-32 Printer, 32ppm simplex A4, 230VAC 50Hz & power cable, heat-roller fixing, 300x300dpi, left tray, 2x250 sheets A4 trays, 500 sheets face down stacker function (normal paper), Intel i960CF 33MHz controller
