For 2 Console, 16 port Matrix Switch (KM-0216) Click here For 4 Console, 32 port Matrix Switch (KM-0432) Click here

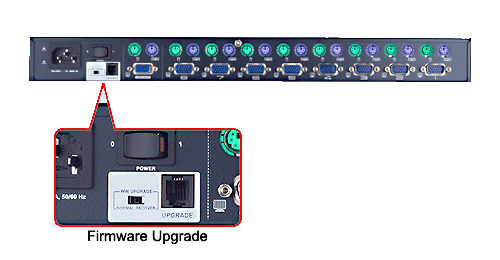

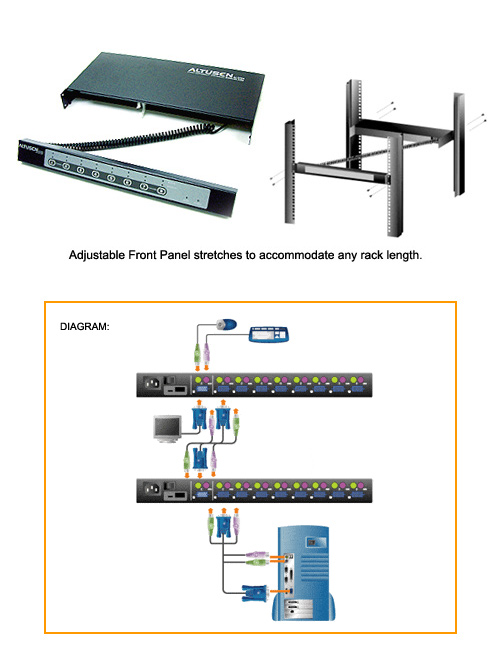

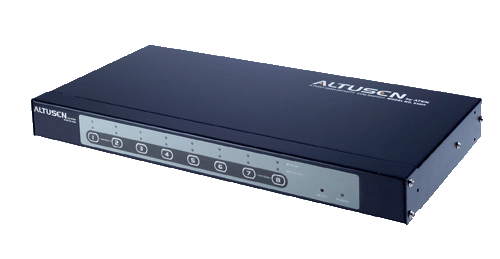

Rear View	8 Port KVM Switch (KH-88) 8 Port High Density KVM Switch with adjustable front panel The KH88 KVM Switch is a control unit that allows access to multiple computers from a single console (keyboard, monitor and mouse). A single KH88 can control up to 8 computers. Since units can be cascaded to three levels, in a full three stage installation up to 73 KH88s can control up to 512 computers - all from a single console. Features Single console controls up to 8 computers Adjustable front panel Cascadable up to 3 levels or control up to 512 computers DDC emulation for each port OSD(On Screen Display) display dinamically adjusts to resolution changes Firmware upgradable Critical Low Power Warning Functions Requirements A VGA, SVGA, or Multisync monitor capable of the highest resolution that you will be using on any computer in the installation. A PS/2 mouse A PS/2 keyboard A VGA, SVGA or Multisync card. A 6-pin mini-DIN (PS/2 style) mouse port. A 6-pin mini-DIN (PS/2 Style) keyboard port with +5V DC on pin 4 and ground on pin 3, or a 5-pin DIN (AT Style) keyboard port with +5V DC on pin 5 and ground on pin 4. Package Contents 1 KH88 KVM Switch 1 Power Cord 1 Rack Mounting Kit 1 User Manual 1 Quick Start Guide 1 Warranty Registration Card Specifications Function KM0432 Computer Connection Direct 8 Max via Cascade 512 Port Selection Front Panel Switches On Screen Display (OSD) Hotkeys LEDs Power 1 (Blue) On Line Port 8 (Green) Selected Port 8 (Orange) Connectors Keyboard 1 x 6 pin mini-DIN female - Console 8 x 6 pin mini-DIN female - CPU Ports Mouse 1 x 6 pin mini-DIN female - Console 8 x 6 pin mini-DIN female - CPU Ports Video 1 x HDB-15 female - Console 8 x HDB-15 male - CPU Ports Scan Interval (OSD Select) 1 - 255 secs. (def. 5 secs.) Power Consumption 100V - 240V, 50Hz - 60Hz; 1.08W (max) Operating Temperature 0 - 50°C Storage Temperature -20 - 60°C Humidity 0 - 80% RH; Noncondensing Enclosure Metal Weight 3.7 kg Dimension(LxWxH) 43.3 x 21.6 x 4.4 cm (1U)
Street Price £262 All prices quoted on this web site are Estimated Street Prices for end-users and exclude Delivery & VAT. Most items are in stock for next day delivery. Please fax through orders to 0118 988 7301 or e-mail us with your requirements , in either case full contact details such as delivery address, contact phone and fax numbers, together with Credit/Debit card details will be required. Credit cards are accepted subject to a 2% surcharge.  No surcharge on Switch,  Delta or Solo Debit cards. If you prefer not to send your card details via e-mail we will gladly call you back the next day to take these details. For larger quantities and Computer Trade discounts please call us on 0118 988 7300 or e-mail us with full contact details . If you already hold an account with AVD the goods will be dispatched the same day. New trade account applications can also be dispatched the same day provided a suitable Debit / Credit card can be quoted.
ALTUSEN and the ALTUSEN logo are registered trademarks of ATEN International Co. Ltd. All other trademarks belong to the respective owners.
