Video Extender
VE-120
VE-120

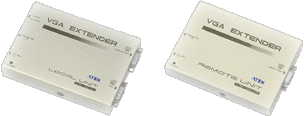

The MasterView VE-120 Video Extender uses a transmitter (VE-120L) and a remote receiver (VE-120R) connected by Category 5 STP cable to extend the distance between the PC and a remote monitor up to 150m (500'). A local monitor can connect to the VE-120L as well.

The VE-120 Video Extender system is ideal for factory and construction sites, or any installation where the display needs to reside in a harsh setting, but you want the system equipment kept in an environmentally friendly location. The Extender system is also useful for control and security purposes, where you can have the system unit in a secure area at the same time that you oput the display in an area which is convenient for viewing.



  • Uses Category 5 Ethernet cable, Easy installation, economical and reliable
  • High resolution video up to 1600 x 1200 @ 100m
  • Long distance transmission up to 150m (500')

Features
Function
VE-120L
VE-120R
Connections Input 15 pin HDB Male
8P8C Jack

Output
 15 pin HDB Female / 8P8C Jack
15 pin HDB Female
LEDs Power 1
Cable Distance Category 5 STP up to 150m (500ft)
Category 5 STP up to 150m (500ft)
Signal Type
 VGA / SVGA / Multisync
VGA / SVGA / Multisync
VGA Resolution 1600 x 1200 @ 100m1600 x 1200 @ 100m
Power consumption
 DC 9V 130mA (Max)
DC 9V 80mA (Max)
Housing MetalMetal
Weight 240 g235 g
Dimensions 119 x 86 x 58 mm (L x W x H)119 x 86 x 58 mm

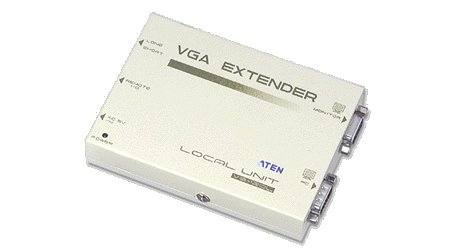

Close up of Local unit (VE-120L)
VE-120 Local
Street Price £119.00 SPECIAL OFFER Now £80.00
(System price above includes both Local and Remote units)
