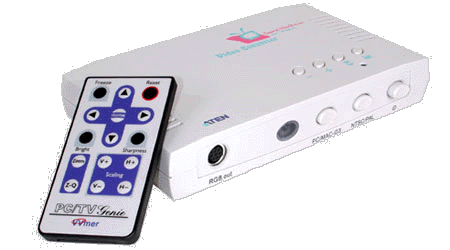

Video Convertor
VC-1024
VC-1024
The ATEN  Video Converter accepts graphic data from your PC's VGA port and converts them into a format suitable for your TV, VCR or Projector (Composite, S-VHS & analog RGB for SCART implementations). It provides the best video quality and prevents interference problems.

The ATEN video converter is a complete hardware solution and is completely plug & play. Just connect the unit to your VGA connector on the back of your PC and it will automatically detect the scan rate and resolution of the incoming graphics signal without any software.



  • True Plug & Play, no software drivers required
  • Compatible with any PC or Mac with VGA video output
  • The scan rates up to 100Hz are supported for 640x480 resolution, 85Hz@800x600, 75Hz@1024x768 and up to 60Hz@1152@864
  • True color quality
  • Simultaneous display both on TV screen and PC monitor
  • Supports NTSC, PAL and SECAM video systems (SECAM system displayed by analog RGB output port)
  • OSD (On Screen Display) function
  • Full-screen Horizontal/Vertical Scaling
  • Horizontal/Vertical picture positioning
  • TV brightness control
  • TV sharpness control
  • 8-Level flicker control
  • Freeze function
  • Auto-Save for screen position, brightness, sharpness
  • Remote control included

Features
Function
Specification
Connections
 Input 1 x 15 pin HDB Male
Output

 1 RCA Jack (composite)
S-Video (S-VHS or Hi-8)
Video Output Composite


 Composite 75 1VP-p
Y/C (S-Video) 75 1VP-p
RGB (SCART) 75 1VP-p
Switch

Power
 On/Off
Video Out
 RGB or Y/C & Composite
Video Mode
 NTSC (60 Hz / 3.58MHz)
VGA Resolution 1024 x 768 (24 bit true colour)
Power consumption
 DC9V 500mA (Max)
Housing Plastic
Weight 220 g
Dimensions 165 x 100 x 27 mm (L x W x H)

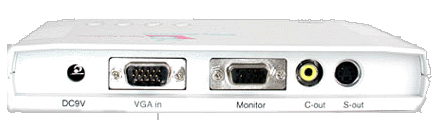

Rear View
VC-1024 Connections
Street Price £POA

All prices quoted on this web site are Estimated Street Prices for end-users and exclude Delivery & VAT.

Most items are in stock for next day delivery. Please fax through orders to 0118 988 7301 or e-mail us with your requirements , in either case full contact details such as delivery address, contact phone and fax numbers, together with Credit/Debit card details will be required. Credit cards are accepted subject to a 2% surcharge.  No surcharge on Switch,  Delta or Solo Debit cards. If you prefer not to send your card details via e-mail we will gladly call you back the next day to take these details.

For larger quantities and Computer Trade discounts please call us on 0118 988 7300 or e-mail us with full contact details . If you already hold an account with AVD the goods will be dispatched the same day. New trade account applications can also be dispatched the same day provided a suitable Debit / Credit card can be quoted.
