2 to 1  Video Switch
VS-201
100MHz
VS-201

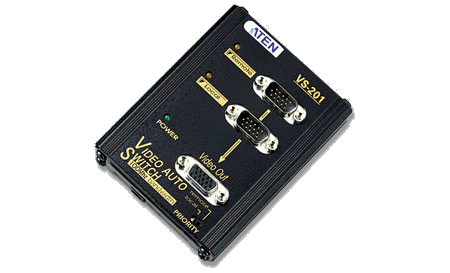

The MasterView Video Auto Switch, VS-201, is an automatic video switch ideal for monitors using analog signals. The VS-201 boosts signals for long distance transmission up to 210 feet. A slide switch sets the priority of incoming video signals for display and the VS-201 automatically selects the proper input signal to its output port. Both features make the VS-201 an excellent choice for educational environments.



  • Supports XGA, VGA, SVGA and Multisync monitors
  • 100MHz Bandwidth support
  • Transmission distance up to 65m (210')
  • Automatic Incoming signal detection
  • Can be daisy chained using VS-104, VS-108, VS-134, VS-138

Features
Function
Specification
Connections
 Input 2 x 15 pin HDB Male
Output
 15 pin HDB Female
LEDs Power 1
Local
 1
Remote
 1
Cable Distance 65 m (210') (Max)
Signal Type
 VGA / SVGA / XGA / Multisync
VGA Bandwidth (-3db)
 100MHz
VGA Resolution 1024 x 768 @ 85Hz
Power consumption
 AC 9V 130mA (Max)
Housing Metal
Weight 190 g
Dimensions 104 x 98 x 24 mm (L x W x H)

Street Price £40.00 SPECIAL OFFER Now £23.00

All prices quoted on this web site are Estimated Street Prices for end-users and exclude Delivery & VAT.

Most items are in stock for next day delivery. Please fax through orders to 0118 988 7301 or e-mail us with your requirements , in either case full contact details such as delivery address, contact phone and fax numbers, together with Credit/Debit card details will be required. Credit cards are accepted subject to a 2% surcharge.  No surcharge on Switch,  Delta or Solo Debit cards. If you prefer not to send your card details via e-mail we will gladly call you back the next day to take these details.

For larger quantities and Computer Trade discounts please call us on 0118 988 7300 or e-mail us with full contact details . If you already hold an account with AVD the goods will be dispatched the same day. New trade account applications can also be dispatched the same day provided a suitable Debit / Credit card can be quoted.
