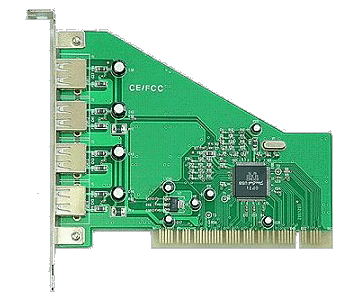

PCI 32 BIT USB 4 Port Card
PCI 32 BIT USB 4-Port Card

Appealing to upgraders and system builders these cards are easy to install and can both extend the life of older PC's, or extend the capabilities of new System builds. Add USB connectivity to pre USB computers, or extend the USB capabilities of newer PC's at a remarkably low cost. This card has 4 USB ports all supporting the usb v1.1 specification. Extremely useful when adding External USB devices, such as mice, keyboards, printers, Video camcorders, modems etc. to a base system. AVD also supply a range of USB cables and convertors incl. USB to Parallel Printer Convertor,  USB Network link cable , USB to RS-232c Serial , USB Data cable , USB to Ethernet convertor , and standard USB-A to USB-B cables.

  1. Bus Interface : 32-bit PCI Bus – Chipset : Opti 862

  2. Features :
    1. 4 x USB Ports
    2. Bridges PCI Bus and the Universal Serial Bus (USB)
    3. USB device bandwidth of up to 12 Mbits/sec through each Port
    4. Supplies 500mA of power each port
    5. Optimized logic design for highest bus bandwidth
    6. Wide range of packet sizes for maximum range of device buffering options
    7. Full support of real time dynamic insertion and removal of devices
    8. Multiple transfers of data and message streams between host and devices
    9. Isochronous, bulk, interrupt, and control transfer types over the same wires
    10. 32-bit PCI local bus interface
    11. PCI Bus Master
    12. Supports up to 127 devices (concurrent operation)
    13. Complies with OpenHCI 1.0, USB 1.1, PCI local BUS 2.2 specifications
    14. Designed for PCI-based 486, Pentium, or P6 motherboards
    15. Compatible with other leading platforms, including PowerPC, Alpha, MIPS, and virtually all Unix RISC-based computing platforms
    16. Supports all USB-compliant peripherals (e.g. keyboard, mouse, monitor, telephone, joystick, etc.)
    17. Supports legacy keyboards and mouse devices

  3. Connector :
    1. 4 X USB connectors
