Artmaster 100 Automatic CD Printer

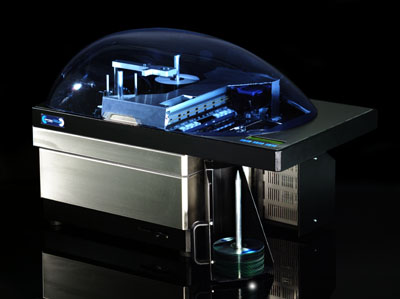

Please click here for bigger picture

  • Features:
  • 100 Disk Capacity
  • Pick & Place Robotic CD loading
  • Standalone Operation
  • Internal Hard Disk for Image Storage
  • Multiple job Queuing
  • 2880DPI Color Resolution
  • CorelDraw * design software
  • CD-R Business card  & 80mm Mini-disc printing option
Artmaster 100
Automatic Colour CD Printer
The Artmaster 100 is a second generation ink-jet CD printer, which is capable of producing up to 100 CD-Rs to 2880 DPI photo quality resolution. In addition to printing regular 120mm CD-Rs & DVD-Rs, The Artmaster 100BC also prints 80mm Minidiscs and CD-R Business Cards.

Easy to operate, efficient and reliable, the Artmaster 100 is an intelligent standalone photo quality CD-R printer, providing a superior quality finish to even traditional screen printing.

Intelligent Image Management System: The printer has a built in intelligent image management system for easy image transfer, selection, deletion and multiple print job scheduling. With integral ZIP™ drive as standard, the printer utilises 100Mb ZIP™ discs (PC only) for image transfer and has a simple button operation and backlit display user interface with 4.3Gb capacity hard disk for image storage.

Unique* Disc Carriage Mechanism: The precision select and shuttle mechanism  combined with the pick and place robotics ensures that the discs are singularly selected from the input hopper and smoothly transported to the print head, ensuring trouble free operation and safeguarding discs from scratches. The input hopper’s capacity is 100 discs. ( * Worldwide patent applied for).

Full Colour Direct to Disc Printing: Utilizing advanced Micro Piezo™ and Ultra MicroDot and variable droplet technology, at resolutions up to 2880 dpi, photographic quality output comes as standard in mono and full colour. Bi-directional printing with logic seeking improves printing times. After printing, the disc is passed through the integral filtered heated drying station which, combined with the fast drying inks, ensures that discs remain separate on the spindle in the output hopper.



Artmaster 100 Printer Specifications
Dimensions: 29¾" X 18¼" X 18½"  (75½cm X 46cm X 47cm)

Cycle Time:

28 Seconds
Capacity: 100 Disc Capacity

Integral ZIP™ drive (PC only)

Integral 4.3Gb hard disk drive

3 button user interface

Media Support & Handling
Inkjet Printable Surface CD-Recordables, 120mm CD-Rs
Unique robotic aluminum disc select & shuttle mechanism
(Artmaster 100BC also prints 80mm Mini-discs and CD-R Business Cards )
Maximum Resolution:

CD-R mono and color 2880 x 720 dpi, (* Resolutions are accessible through the Windows print driver)

Print Speed: CD-R mono and colour ** 20 seconds per disc, mono, colour ** 56 seconds per disc (**speed dependant disc coverage)
Cartridges:

Fast Drying Black Ink Cartridge, Fast Drying Colour Cartridge (CYM), Large capacity Black Cartridge

Design Software: CorelDraw*
Warranty: 12 months back to base, all parts and labour included
Please note the caddie is a consumable item

*CorelDraw design software is PC compatible only
