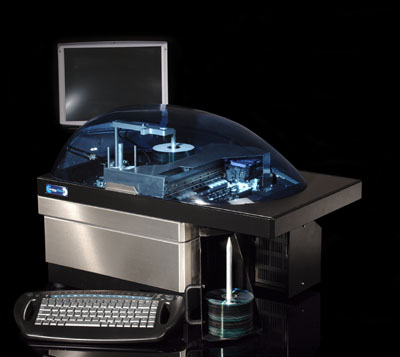

Artmaster II Automatic CD Printer
Artmaster II CD Printer

Please click here for bigger picture

Features:
  • 150 Disk Capacity
  • Pick & Place Robotic CD loading
  • Integrated Hot Air Drying Station
  • Prints to 120mm CD-R's 80mm CD-R's Business Card CD-R's
  • Standalone Operation
  • Internal Hard Disk for Image Storage
  • Multiple job Queuing
  • 2880DPI Colour Resolution
Artmaster II Automatic Colour CD Printer  The Artmaster II is a second generation CD inkjet printer, which is easily capable of producing up to 150 CD-R's to 2880 DPI photo quality resolution.
The Artmaster II is the first automatic CD printer that can print directly to CD-R's, 80mm CD-R's and Business Card CD's.
Easy to operate, efficient and reliable, the Art Master Auto is an intelligent standalone photo quality CD-R printer, providing a superior quality finish to even traditional screen printing.

Intelligent Image Management System: The printer has a built in intelligent image management system for easy image transfer, selection, deletion and multiple print job scheduling. With integral ZIP™ drive as standard, the printer utilises 100Mb ZIP™ discs (PC only) for image transfer and has a simple button operation and backlit display user interface with 4.3Gb capacity hard disk for image storage.

Unique* Disc Carriage Mechanism: The precision select and shuttle mechanism  combined with the pick and place robotics ensures that the discs are singularly selected from the input hopper and smoothly transported to the print head, ensuring trouble free operation and safeguarding discs from scratches. The input hopper’s capacity is 150 discs. ( * Worldwide patent applied for)

Full Colour Direct to Disc Printing: Utilising advanced Micro Piezo™ and Ultra MicroDot and variable droplet technology, at resolutions up to 2880 dpi, photographic quality output comes as standard in mono and full colour. Bi-directional printing with logic seeking improves printing times. After printing, the disc is passed through the integral filtered heated drying station which, combined with the fast drying inks, ensures that discs remain separate on the spindle in the output hopper.

Artmaster II CD Printer Specification
Dimensions: 29¾" X 18¼" X 18½"  (75½cm X 46cm X 47cm)

Cycle Time:

28 Seconds
Capacity: 150 Disc Capacity
Integral ZIP™ drive (PC only)
Integral 4.3Gb hard disk drive
3 button user interface
Media Support & Handling Inkjet Printable Surface CD-Recordables, 120mm, 80mm & Business Cards
Unique robotic aluminum disc select & shuttle mechanism
Maximum Resolution: CD-R mono and colour 2880 x 720 dpi, (* Resolutions are accessible through the Windows print driver)
Print Speed: CD-R mono and colour ** 20 seconds per disc, mono, colour ** 56 seconds per disc (**speed dependant disc coverage)
Cartridges:

Fast Drying Black Ink Cartridge, Fast Drying Colour Cartridge (CYM), Large capacity Black Cartridge

Design Software: CorelDraw 7
Options: Additional Transport Caddies
Warranty: 12 months back to base, all parts and labour included
Please note the caddies are consumable items
