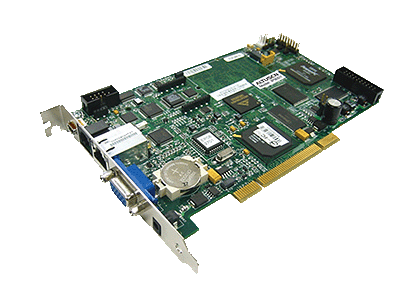

pcIP card (IP9001)
pcIP card

The IP9001 is a PCI card that provides remote access to your server should it go down. With the IP9001 you can check the event log, the health of your machine, reset it, or power it on and off. Also, with the virtual CD Rom and floppy enabled, you can remotely install new software, upgrade your firmware or restore your computer's operating system. All the features you need to manage your server easily from your office or anywhere where you can connect to the internet via web browser interface. With the kind of protection that the IP9001 provides, you can be sure that your equipment is always running, always healthy and always secure.
Features
  • PCI card
  • Independent VGA on card
  • Assessable from anywhere in the world
  • Hardware health monitoring
  • Supports up to 64 accounts
  • Virtual CD Rom: Remote software install and upgrade
  • USB 2.0 Hub
  • Support SNMP traps: substantial savings of network and agent resources by eliminating the need for frivolous SNMP requests
  • Independent Power source: not affected when system power failure
  • Host-side OS support: Windows 2000/2003/XP, Redhat 8.0 and above.
  • Out of band operation (with optional modem module)
  • Independent control

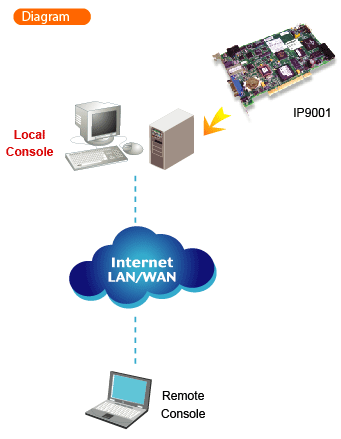

Function



Package Contents
  • 1 IP9001 Card
  • 1 USB Cable
  • 1 Custom Made Feature Connector Cable
  • 1 Power Cord
  • 1 AC Adapter
  • 1 Software
  • 1 User Manual
  • 1 Quick Start Guide
  • 1 Warranty registration card
Specifications
Function
IP9001
Processor SOC
32-Bit 266 MHz
400 MIPS MMU
16K I-Cache
16K D-Cache
CPU Memory
32 MB PC-133 MHz SDRAM
Flash
16-Bit, 16 MB
Frame Memory
8 MB, 32-Bit SDRAM Standard Option
16 MB Option for OEMs
VGA Controller
ATI RAGE XL With 8 MB, 32-Bit SDRAM with DVIOutput
PCI 2.2 32-Bit, 66 MHz
Ethernet LAN

10/100 Mbit SOC Integrated
USB Device Controller
for Mouse/Keyboar
USB1.1 Device Controller
USB Device Controller
for CDROM

USB1.1 Device Controller
USB Device Controller
for Floppy
USB1.1 Device Controller
USB HUB
I2C Controller

USB 2.0 HUB
Modem + DAA
Plug-In Socket MODEM 56K
Hardware Monitor

PCI Voltages
Card Internal Voltages
Temperature
Modem + DAA (Optional)
Plug-In Socket MODEM 56K
Hardware Monitor

PCI Voltages
Card Internal Voltages
Temperature
RTC
Time Clock Chip + Lithium Coin Cell
Power Supply

PCI 3.3V
PCI 5V
WALL Adapter 6V
900ma/hr Lion battery
Serial Port X 3
Debug Port
RS485
1 External
Form Factor

Half Size Standard PCI Card
Debug Support
Jtag ICE
power consumption

15W(Max.)
Weight
128g
Dimensions

187.7*126.7*21mm
