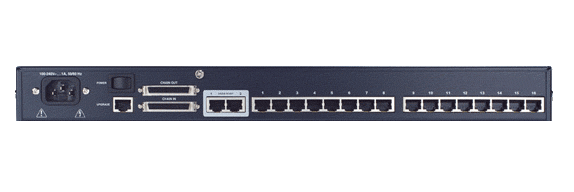

Rear View
|
|
Related Products
|
PS/2 CPU Module
KA-9120 |
|
CPU adapter for PS/2 computers, connecting to KM-0432 and KM-0216 |
|
|
SUN CPU Module
KA-9130 |
|
CPU adapter for SUN PC computers, connecting to KM-0432 and KM-0216 |
|
|
|
SUN USB CPU Module
KA-9131 |
|
CPU adapter for PS/2 computers, connecting to KM-0432 and KM-0216 |
|
|
Serial CPU Module
KA-9140 |
|
Serial CPU adapter, connecting to KM-0432 and KM-0216 |
|
|
|
USB CPU Module
KA-9170 |
|
CPU adapter for USB computers, connecting to KM-0432 and KM-0216 |
|
|
|
PS/2 Console Module
KA-9222 |
|
PS/2 Console Module |
|
|
USB Console Module
KA-9272 |
|
USB Console Module
|
|
|
Matrix Daisy Chain Cable
KC-1800 |
|
Matrix Daisy chain cable
|
|
|
|
|
|
|
|

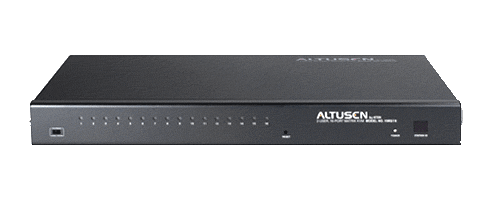

2 x 16 Matrix KVM Switch (KM0216)
|
2 Console 16 port Matrix KVM Switch
The KM0216 Matrix KVM Switch gives IT administrators in large
corporations advanced control of multiple servers. Operators working at
up to two keyboard, mouse, and monitor consoles can simultaneously and
independently take direct control of up to 16 computers. With a
combination of daisy chaining and cascading, up to 16 operators can
access and control up to 2,048 computers.
Features
* Two consoles independently and simultaneously control up to 16 directly connected computers
* Daisy chain up to 7 additional units
* Cascade up to 16 compatible KVM switches from each station on the chain
* Up to 16 consoles control all of the computers on a daisy chained/cascaded installation
* Compact design - RJ-45 connectors allow rack mounting in a 19", 1U, system rack
* Multiplatform support: PC, Mac and Sun
* Console conversion - any type of console can
control any type of computer - mixed combinations (PS/2 & USB)
supported on both the console and computer sides
* PS/2 keyboard and mouse emulation - computers boot even when the console focus is elsewhere
* Hot pluggable; add or remove components without having to power off the switch
* No software required; convenient computer selection via intuitive hotkey
* combinations or On Screen Display (OSD) menus
* OSD port list automatically expands when stations
are added -port names are automatically reconfigured when the station
sequence is changed
* OSD screen automatically adjusts to resolution changes
* Auto Scan feature for monitoring user-selected computers
* Three level password security: Super Administrator, Administrator, and Users
* LCD, VGA, SVGA, XGA, and MultiSync support; DDC2B
* Superior video quality - up to 1024 x 768 @ 60Hz
for up to 150m; 1920 x 1440 at normal cable distances (i.e., without
extension cables)
* Auto Signal Compensation (ASC) assures optimum
video resolution for distances up to 150m between the switch and the
consoles or computers - no DIP switch setting required
* Lifetime firmware upgrading via flash ROM

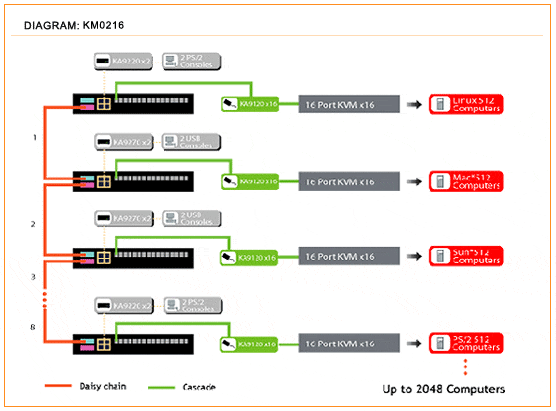

Functions
Package Contents
* 1 KM0216
* 1 Rack mount kit
* 1 Power Cord
* 1 User Manual
* 1 Quick start guide
* 1 Warranty Registration Card
Specifications
|
Function |
KM0216 |
PC
Connection |
Direct |
16 |
Max via
Cascade or
Daisy Chain |
128
(via 8 level daisy chain)
128 (via 8 level daisy chain)
2048 (via 8 level daisy chain +
2 level cascade) |
Console
Connection |
Direct |
2 |
Max via
8 level
Daisy Chain |
16 |
PC Selection |
Hotkey
OSD |
KM0216 |
Connectors |
Computer
side |
16
x RJ-45 (F) Silver |
Console side |
2 x RJ-45 (F)
Silver |
Daisy Chain |
2 x HDB-60 (F)
Black |
F/W upgrade |
1 x RJ-45 (F)
Silver |
LEDs |
On Line / Selected
|
16 dual colored
(Green / Red) @ Front |
Power |
1 x Blue @ Front |
Station ID |
2 x 7 segments
(Orange) @ Front |
Enclosure |
Metal |
Weight |
4.2
kg |
Dimension(LxWxH) |
43.24
x 25.42 x 4.4 cm |
Keyboard / MouseEmulation |
PS/2,
USB (PC, Mac, Sun), Sun |
Scan Interval
|
0
~ 255 Seconds |
Resolution |
1024
x 768 @ 150m; DDC2B |
Operation Temperature
|
0°
~ 50° |
Storage Temperature
|
-20°
~ 60° |
Humidity |
0
~ 80% RH, NC |
KA9131
/ KA9170
(KVM Adapter Cable) |
Connectors |
Link |
1 x RJ-45 (F)
Silver |
Plugs |
K/B & Mouse
to computer |
1 x USB Type-A
(M) Black |
VGA to computer
|
1 x HDB-15 (M)
Blue |
LEDs |
Link |
1 x Green @ Top |
Power |
1 x Orange @ Top |
KA9120
(KVM Adapter Cable) |
Connectors |
Link |
1 x RJ-45 (F)
Silver |
Plugs |
Mouse to computer
|
1 x Mini-DIN-6
(M) Green |
Keyboard to computer |
1 x Mini-DIN-6
(M) Purple |
VGA to computer
|
1 x HDB-15 (M)
Blue |
LEDs |
Link |
1 x Green @ Top |
Power |
1 x Orange @ Top |
KA9130
(KVM Adapter Cable) |
Connectors |
Link |
1 x RJ-45 (F)
Silver |
Plugs |
Keyboard / Mouse
to computer |
1 x Mini-DIN-8
(M) Purple |
VGA to computer
|
1 x 13W3 (M) Gray |
LEDs |
Link |
1 x Green @ Top |
Power |
1 x Orange @ Top |
KA9270
(Console Module) |
Connectors |
Link to KM0432 |
1 x RJ-45 (F)
Silver |
Console K/B |
1 x USB Type-A
(F) White |
Console Mouse |
1 x USB Type-A
(F) White |
For VGA Monitor |
1 x HDB-15 (F)
Blue |
LEDs |
Link |
1 x Green @ Front
|
Power |
1 x Orange @ Front |
Enclosure |
Metal |
Weight |
440
g |
Dimensions |
200
x 85 x 35 mm |
KA9220
(Console Module) |
Connectors |
Link to KM0432 |
1 x RJ-45 (F)
White |
Console Mouse |
1 x Mini-DIN-6
(F) Green |
Console Keyboard |
1 x Mini-DIN-6
(F) Purple |
Console Monitor |
1 x HDB-15 (F)
Blue |
LEDs |
Link |
1 x Green @ Front |
Power |
1 x Orange @ Front |
Enclosure |
Metal |
Weight |
440
g |
Dimensions |
200
x 85 x 35 mm |
Switch |
Normal / Recover |
1 x Slide Switch |
|
|
|
|
|
