Altusen
For 2 Console, 16 port Matrix Switch (KM-0216) Click here
For 4 Console, 32 port Matrix Switch (KM-0432) Click here

Rear View




Related Products



2 Console, 16 port Matrix Switch
KM-0216

2 console 16-port high density Matrix KVM switch in 1U height


4 Console, 32 Server Matrix KVM Switch
KM-0432

4 console 32-port high density Matrix KVM switch in 1U height

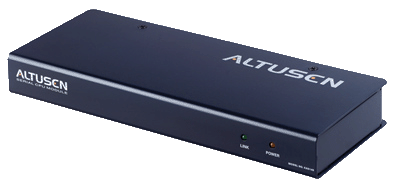

Serial CPU Adaptor  (KA-9140)
Serial CPU Module

Features
  • VT100 Support
  • RJ-45 Connector - Saves valuable space on your system rack with only 0U profile.
  • 150 Meter - Maximum distance from terminal to Matrix KVM Switches. Allows greater flexibility for system administrators.
  • Integrated ASC (auto signal compensation) - removes the need for setting DIP switch configurations for distances.
  • No Software Required - Convenient computer selection via intuitive hotkey combination or On Screen Display (OSD) Menu.

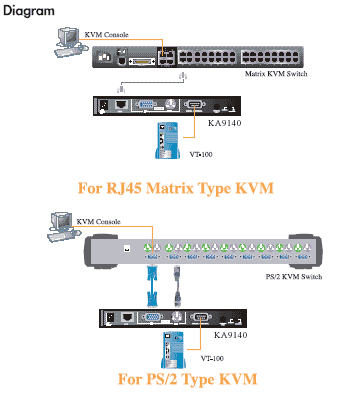

Function



Package Contents

  • 1 KA9140
  • 1 Power Adapter
  • 1 Rack Mount Kit
  • 1 Firmware Upgrade Cable
  • 4 Foot Pads
  • 1 Quick Start Guide
  • 1 Warranty Registration Card
Specifications

Function
KA9140

Connectors

 Computer Side RS-232 1 x DB-9 female (black)
Console Side Link 1 x RJ-45 female (black)
Keyboard 1 x mini-DIN female (purple)
VGA 1 x HDB-15 female (blue)
Upgrade 1 x Earphone-jack-4 female(black)

LEDs

 Power 1 x Orange
Link 1 x Green
Switch (Normal / Upgrade)
1 x 2 way slide switch
Operation Temperature
0~50°C
Storage Temperature
-20~60°C
Humidity 0~80% RH, NC
Power Consumption
DC 5V 1.5W
Enclosure Metal
Weight 500 g
Dimensions (L x W x H) 200 x 80 x 35 mm



Street Price £230

All prices quoted on this web site are Estimated Street Prices for end-users and exclude Delivery & VAT.

Most items are in stock for next day delivery. Please fax through orders to 0118 988 7301 or e-mail us with your requirements , in either case full contact details such as delivery address, contact phone and fax numbers, together with Credit/Debit card details will be required. Credit cards are accepted subject to a 2% surcharge.  No surcharge on Switch,  Delta or Solo Debit cards. If you prefer not to send your card details via e-mail we will gladly call you back the next day to take these details.

For larger quantities and Computer Trade discounts please call us on 0118 988 7300 or e-mail us with full contact details . If you already hold an account with AVD the goods will be dispatched the same day. New trade account applications can also be dispatched the same day provided a suitable Debit / Credit card can be quoted.


ALTUSEN and the ALTUSEN logo are registered trademarks of ATEN International Co. Ltd.
All other trademarks belong to the respective owners.
