KVM over the NET (KN-9000)
|
IP
implemented KVM solution that allows computer access from any station
connected to the network, whether it is LAN, WAN, or even the World
Wide Web

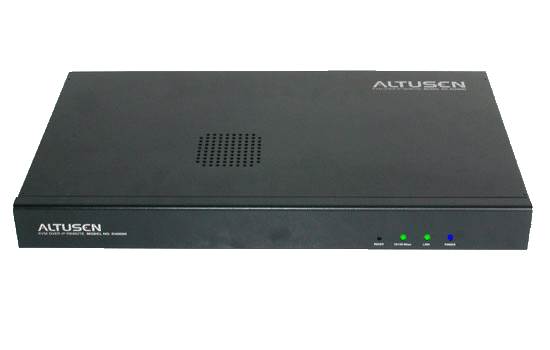

The Altusen KVM on the Net™ is an
IP implemented KVM solution that allows network administrators to
access computers from any station connected to the network, whether it
is the LAN, WAN, or even the World Wide Web. Network administrators can
enjoy freedom from being bound to the server room; work from anywhere
in the office, remote locations, or even from home!
Since KVM on the Net uses TCP/IP as its communication protocol, network
administrators can remotely access attached KVM switches, allowing
remote control of the attached servers to perform many tasks with ease
and speed, such as installing and running GUI applications, BIOS level
troubleshooting, routine monitoring, system maintenance, system
administration, and rebooting. It supports 10Base-T, 100Base-T, TCP/IP,
and HTTP. The server can be accessed whether it is down the hall, on
the other side of town, or thousands of miles away!
Utilizing advanced security technologies, KVM on the Net provides
password protection, advanced encryption technologies, sophisticated
user filters and user management, stealth mode and automatic lockout to
make sure that remote access is secure.
Also, KVM on the Net offers high resolution (up to 1280 x 1024) ,
user-friendly Windows GUI Client Software and Java client software.
Features
- Remotely control your servers via the LAN, WAN, or the Internet
- Supports 10Base-T, 100Base-T, TCP/IP, HTTP
- Works with most KVM switches
- Advanced security features: password protection,
advanced encryption technologies, sophisticated user filters and user
management, stealth mode and automatic lockout
- User friendly client software allows for video adjustment, bandwidth control and mouse synchronization
- High video resolution: up to 1280 x 1024
- Windows GUI and Java based client software; Java client works with all operating systems
- Upgradeable firmware
- 110-220V auto-sensing power supply
- Designed for both desktop and rack mount
Requirements
- To use and access the KN9000 unit successfully, your computer requires the following:
- At least a P III 1 GHz processor.
- For the Windows Client, you must have DirectDraw 7.0 or higher installed.
- The Windows Administrator Utility software, the
Windows Client software, the Log Server, and the Java Client software
all support Windows 9x, ME, 2000, and XP.
- For the computer to be accessed by KN9000:
- Set the screen resolution to 1024x768.
- Mouse settings for various operating systems are as follows:
- Windows XP – set the mouse speed to the middle position and disable Enhance Pointer Precision.
- Windows 2000 – set the mouse speed to the middle position, and select None for mouse acceleration.
- Windows NT/98 – set the mouse speed to the slowest position.
- Windows ME/95 – set the mouse to the middle position, and disable mouse acceleration.
- Redhat Linux – set the mouse threshold to the middle position, and mouse acceleration to the middle position.
Package Contents
- 1 KN9000 KVM On the Net control unit
- 1 Custom KVM cable set
- 1 Rack mounting Kit
- 1 Software CD
- 1 Power cord
- 1 User manual
- 1 Quick start guide
- 1 warranty registration card
Specifications
|
| Function | KN9000 |
|---|
| Console Connectors |
| Keyboard |
1x6 in mini-DIN Female (PS/2) |
| Monitor |
1xHDB-15 Female |
| Mouse |
1x6 in mini-DIN Female (PS/2) |
| CPU Connectors |
| Keyboard |
1x6 in mini-DIN Female (PS/2) |
| Monitor |
1xHDB-15 Male |
| Mouse |
1x6 in mini-DIN Female (PS/2) |
| Dimensions |
| Depth |
10.2" |
| Height |
1.75" |
| Width |
17" |
| Housing |
| Case |
Metal |
| LAN Connection |
1xRJ-45 Female |
| LEDs |
| 10/100 Mbps |
1xYellow |
| Link |
1xGreen/Red |
| Power On |
1xBlue |
| Power Connections |
3 Prong Receptacle |
| Power Switch |
1xMomentary Switch |
| Protocols |
10Base-T Ethernet; 100Base-T Fast Ethernet; TCP/IP;HTTP |
| Reset Switch |
1xMomentary Switch |
| Video Resolution |
Up to 1280 x 1024 |
|
|
|
|
|
