Altusen
For 2 Console, 16 port Matrix Switch (KM-0216) Click here
For 4 Console, 32 port Matrix Switch (KM-0432) Click here

Rear View

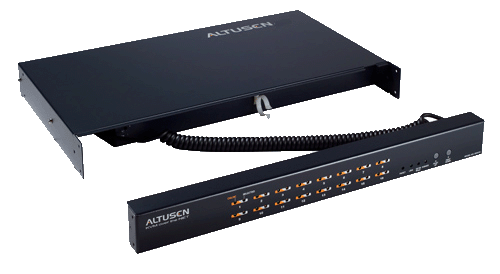

16 Port KVM over the NET (KN-9116)
16 Port KVM over the NET

The KN9116 is an IP-based KVM control unit that allows both local and remote operators to monitor and access multiple computers from a single console. A single KN9116 can control up to 16 computers.
Since the KN9116 uses TCP/IP for its communications protocol, it can be accessed from any computer over the Net - whether that computer is located down the hall, down the street, or half-way around the world.

Features
  • 16 port, remote access, KVM switch - monitor and control up to 16 computers from a single KVM (Keyboard, Video, Mouse) console
  • Remotely access computers via LAN, WAN, or the Internet; control your installation from down the hall, down the street, or half-way around the world

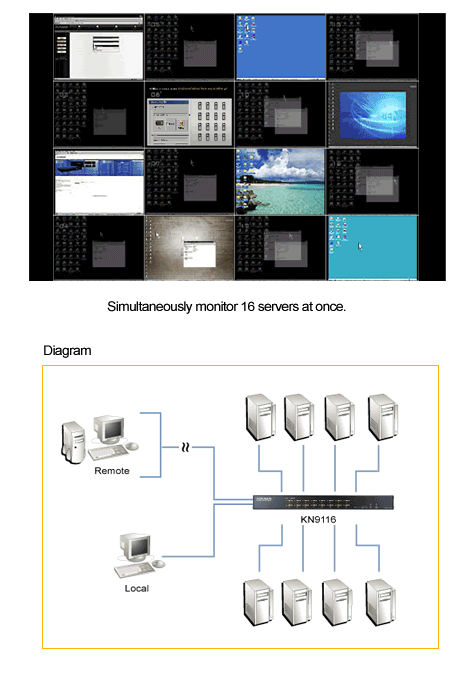

  • Simultaneously monitor 16 servers at once
  • Internet browser access; Windows client and Java client provided; Java client works with all operating systems*
  • Graphical OSD and graphical toolbars for convenient, user friendly operation
  • Strong security features include password protection and advanced encryption technologies - DES 56 bits / AES 256 bits / RSA 1024 bits / SSL 128 bits
  • Upgradeable firmware
  • Dual Bus - Concurrent log in for local and remote administrators
  • Supports 10Base-T, 100Base-T, TCP/IP, HTTP
  • High video resolution: up to 1280 x 1024 @ 75Hz; 1600 x 1200 @ 60Hz
  • F<>ront panel can separate from main chassis for convenient rack mounting
* *Browsers must support 128 bit SSL encryption.

Function



Requirements

  • For best results, computers that remotely access the KN9116 should have at least a P III 1 GHz processor, with their screen resolution set to 1024 x 768.
  • Users who want to access the KN9116 with the Windows Client must have DirectX 7.0 or higher installed.(If you don't already have it, DirectX is available for free download from Microsoft's web site: http://www.microsoft.com/downloads.)
  • Users who want to access the KN9116 with the Java Client must have Sun's Java 2 (1.4 or higher) runtime environment installed. Java is available for free download from the Sun Java website: http://java.sun.com
  • Browsers must support 128 bit SSL encryption.
  • The following equipment must be installed on the computers that connect to the KN9116's CPU ports: 1. A VGA, SVGA or Multisync port. 2. A 6-pin mini-DIN (PS/2 style) keyboard port. 3. A 6-pin mini-DIN (PS/2 Style) mouse port.
  • Cables(2L-5702P)--Substandard cables may damage the connected devices or degrade overall performance. If you need additional cables, we strongly recommend that you see your dealer to purchase our high quality CS Custom Cable sets.
Package Contents

  • 1 KN9116 KVM over the NET™ KVM Switch
  • 2 Custom KVM Cable Sets
  • 1 Power Cord
  • 1 User Manual
  • 1 Rack Mount Kit (Brackets and Phillips head hex M3 x 8 screws)
  • 1 Quick Start Guide
  • 1 Registration Card
  • 4 Foot Pads

Specifications
Function KN9116
Computer Connection 16
Port Selection OSD / Hotkeys
LEDs Power 1 (Blue)
On Line 16 (Green)
Selected 16 (Orange)
10/100 Mbps 1 (Orange/Green)
Link 1 (Green)
Connectors Console K/M 2 x 6 pin mini-DIN female - (KB-purple; M-green)
Console VGA 1 HDB-15 female
LAN 1 x RJ-45
Power On 1 x DB-9 male
Power Socket 3 pin AC power jack
CPU Ports 16 x SPDB-15 female
Switches Power 1 x Rocker Switch
Port Up / Port Down 2 x pushbutton
Reset 1 x Semi-recessed pushbutton
Power Input Rated 100V - 240V, 50Hz/ 60Hz; 250mA
Power Consumption 120V / 60Hz; 230V/50Hz; 12W
Keyboard/ Mouse Emulation PS/2
Scan Interval (OSD Select) User Specified; 1 - 255 secs.
Video 1600 x 1200; DDC2B
Operating Temperature 0 - 50°C
Storage Temperature -20 - 60°C
Humidity 0 - 80%
Housing Metal
Weight 4.2 kg
Dimension(LxWxH) 43.72 x 26 x 4.4 cm
Cable Requirement 2L-5702P(1.8m)



Street Price £1039 SPECIAL OFFER Now £750.00

All prices quoted on this web site are Estimated Street Prices for end-users and exclude Delivery & VAT.

Most items are in stock for next day delivery. Please fax through orders to 0118 988 7301 or e-mail us with your requirements , in either case full contact details such as delivery address, contact phone and fax numbers, together with Credit/Debit card details will be required. Credit cards are accepted subject to a 2% surcharge.  No surcharge on Switch,  Delta or Solo Debit cards. If you prefer not to send your card details via e-mail we will gladly call you back the next day to take these details.

For larger quantities and Computer Trade discounts please call us on 0118 988 7300 or e-mail us with full contact details . If you already hold an account with AVD the goods will be dispatched the same day. New trade account applications can also be dispatched the same day provided a suitable Debit / Credit card can be quoted.
