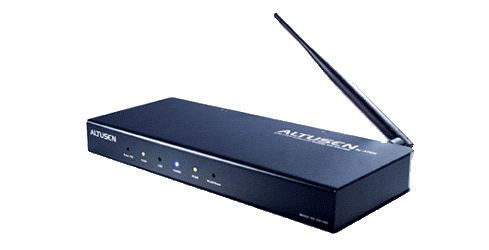

Complete Solution for Wireless Connectivity (KW1000)

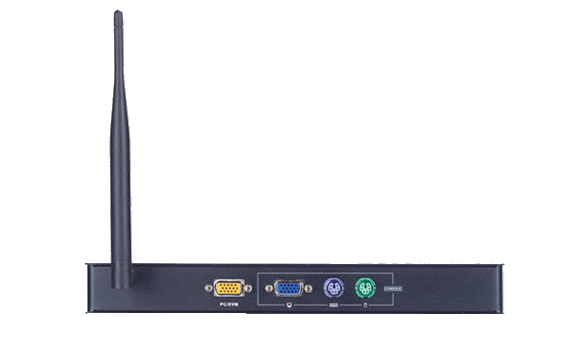

Rear View

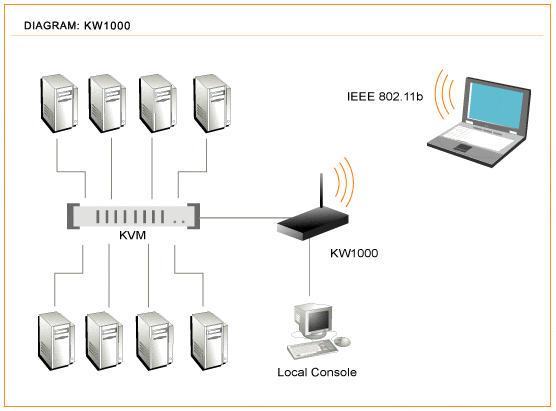

KVM over Wireless

The KW1000 is a control unit that uses the TCP/IP and IEEE 802.11b protocols to allow administrators to remotely monitor and access their computer/server installations wirelessly. Wireless connectivity eliminates the infrastructure expense and inconvenience of wired networks at the same time that it provides the administrator with the freedom to move around the workplace to suit his demands.

Features
  • Wireless remote access of KVM switches or servers (IEEE 802.11b WLAN)
  • Advanced security features: password protection; advanced encryption technologies
  • High video resolution: up to 1600 x 1200 DDC2B
  • Windows GUI and Java based Client software; Java client works with all operating systems.
  • Firmware upgradeable via WLAN Ethernet connection.
  • Multiple user accounts
Function



Package Contents

  • 1 KW1000
  • 1 Power Adapter
  • 1 1.2m Custom KVM Cable
  • 1 Software CD
  • 1 Warrenty Registration
  • 1 QSG
  • 1 User Manual
Specifications
Function
KW1000

Connectors
Console Ports

1 x 6 pin mini-DIN female - Keyboard
1 x 6 pin mini-DIN female - Mouse
1 x HDB-15 F - Vedio
KVM Port
1 x SPHD-15 F
Power
1 x DC Jack (DC 5V; 2.6A max)

LEDs
Mouse
Tx/ Rx
1 x Orange
Link 1 x Green
Power
1 x Blue
WLAN
1 x Orange
Vedio
Up to 1600 x 1200 @ 60 Hz
Protocols
IEEE 802.11b
Power Consumption
1800 mA
Operating Temperature
0 - 50° C
Storage Temperature
-20° C - 60° C
Humidity
0 - 90% RH
Housing
Metal
Weight
0.51g
Dimensions ( L x W x H )
26.6 x 11.2 x 3.2 cm

Street Price £603
