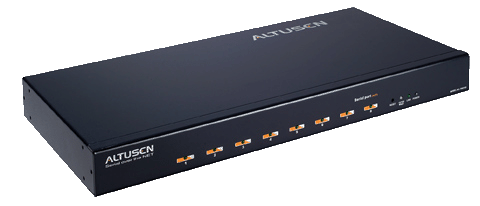

8 Port Serial over the Net (SN0108)

8 Port Serial Over the Net

The SN0108 Serial over the NET™ is a control unit that provides remote serial access to up to eight servers or other serial IT devices (hubs, routers, power management devices, etc.), via a TCP/IP connection. Up to eight users can log in at the same time from any computer connected to the Internet, whether down the hall, or half way around the world. Each is able to control a separate port so that eight attached devices can be accessed at the same time.

Features

  • Complete Remote Serial Management: Remote serial access over the Internet for up to 8 servers or other serial IT devices
  • Each port can beaccessed individually by 8 users
  • Secure: Multi level secure user login; user authentication; port-specific access rights
  • Simple access using Telnet, VT100 console terminals, and Java-enabled web browsers
  • Dial in Modem Access: Using serial applications (such as Hyperterminal), or IP applications (such as Telnet)
  • Supports TCP/IP, UDP/IP, Telnet, SSH, SSL and PPP
  • Sun Ready: Hardware break suppression ensures ininterrupted operation of your Solaris server
  • Console port automatically detects and adjusts to incoming protocol

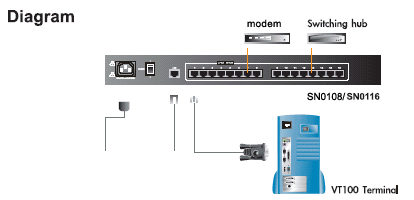

Function



Requirements

  • Sun's Java 2 JRE 1.4 or higher must be installed on your computer. Java is available for free download from the Sun Java website: http://java.sun.com
  • The devices that connect to the SN0108 must support RS-232 terminal operations.
Package Contents

  •  1 SN0108
  •  1 RJ-45 (F) to DB-9 (M) Adapter
  •  8 RJ-45 (F) to DB-9 (F) Adapters
  •  1 Power Cord
  •  1 Software CD
  •  1 Rack Mount Kit (Brackets and Phillips head hex M3 x 8 screws)
  •  4 Foot Pads
  •  1 User Manual
  •  1 Quick start guide
  •  1 Warranty Registration card

Specifications

Function
SN0108
Serial
Connectors
To Devices
8 x RJ-45
Uplink 1 x RJ-45
Power Socket
1 x 3 Pronged Receptacle
LEDs
Link
1 (green)
10/100 Mbps
1 (Orange/Green)
Power
1 (blue)
RS-232 Port 8 x Green
Switches
Power
1 x Rocker switch
Reset
1 x Semi recessed pushbutton
Power Input Rating
AC 100 ~ 240V; 50/60Hz; 0.1A
Power Consumption
120V / 60Hz / 8W
230V / 50Hz / 8W
Environment

Operating Temperature: 0-50°C
Storage Temperature: -20-60°C
Humidity : 0-80% RH

Housing
Metal
Weight
3.3kg
Dimensions ( L x W x H )

433 x 214 x 44 mm





Street Price £440 SPECIAL OFFER Now £299.00

All prices quoted on this web site are Estimated Street Prices for end-users and exclude Delivery & VAT.


Most items are in stock for next day delivery. Please fax through orders to 0118 988 7301 or e-mail us with your requirements , in either case full contact details such as delivery address, contact phone and fax numbers, together with Credit/Debit card details will be required. Credit cards are accepted subject to a 2% surcharge.  No surcharge on Switch,  Delta or Solo Debit cards. If you prefer not to send your card details via e-mail we will gladly call you back the next day to take these details.

For larger quantities and Computer Trade discounts please call us on 0118 988 7300 or e-mail us with full contact details . If you already hold an account with AVD the goods will be dispatched the same day. New trade account applications can also be dispatched the same day provided a suitable Debit / Credit card can be quoted.
