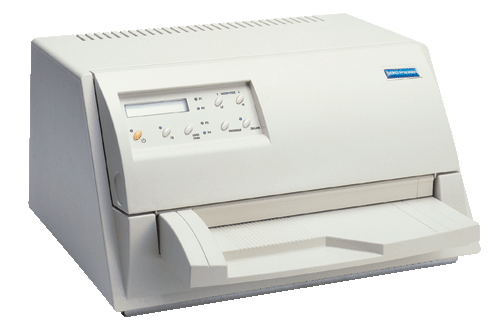

FB-300 ... 24-pin Flat Bed dot matrix printer
A flatbed printer for handling forms easily. Particularly convenient thanks to its automatic paper alignment and margin recognition.

<> User-friendly interface.Graphic LCD depicting printer status
<> Stable and reliable paper handling.
<> Printable on a variety of media. Invoices, receipts, tickets, and other forms
<> Maximum 0.6mm thickness capability. Accommodates cards for mission-critical printing in offices, shops and factories.


A Flat Bed Printer for multifunctional use
The FB-300 is the ideal form printer for invoices, receipts and normal A4 paper.
Medical practices and other service-based business areas in particular rate this printer highly. Its extremely practical paper handling avoids misprints and thus improves productivity and efficiency. The compact design and unusually small footprint make the FB-300 ideal for use in a cramped office environment. The printhead's lifespan of 400 million characters plus the ribbon's lifespan of 4 million characters give a price per page, that is difficult to find in other printers in the market

Stable and reliable paper handling
FB-300's delivers stable, reliable paper feeding with an automatic paper alignment function which ensures a correct printout even if the paper has not been inserted straight. The automatic head gap adjustment immediately recognises the thickness of the medium and creates an optimum printhead position for a precise result.

Easy Setup
An optical reader recognises the printer setup parameters from a manually marked instruction sheet

Maximum 0.6mm thickness capability
By accepting forms up to 0.6mm thick, FB-300 is able to handle many types of media such as cards, notebooks,

Print method 24-pin dot matrix impact
Bidirectional (text & graphics)
Print speed
Draft 12cpi
LQ 10cpi
Emulation EPSON LQ-870 (ESC/PS without font scaling), IBM 2390+, OKI ML
Data Buffer 32 Kbytes
Resident Font Draft, Courier, Gothic, OCR-A, OCR-B, Prestige, Script, Boldface and Presentor
Barcode BCD, Industrial 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, Codabar, Code 11, Code 39, Code 93, Code 128, EAN-8, EAN-13, UPC-A, UPC-E, POSTNET, MSI, ADD-ON 2, ADD-ON 5
Paper feed Push tractor or friction
Park function
Paper path
:Rear push tractor / Front out

:Rear push tractor(*1)
Cut sheet
:Front Manual Insertion, Front ejection
Detection function
:Paper Jam, Paper Skew, Paper Width
Paper Widtn
:79-235mm Wide
min Length 68.6mm
Print Width

8.0 inches (203mm)
Cut sheet
Length 68.6-711.2mm

Print Width
9.4 inches (239mm)
Paper Thickness
:0.52mm max.
Cut sheet
:0.60 mm max.
Multipart Form
Original plus 5 duplicates )
Operating Panel
Graphic LCD,
Printing Ribbon
Special cassette-type black fabric ribbon
Ribbon life: 4 million charactors (Draft mode)
Interfaces with Automatic recognition
Parallel (Bidirectional/EEE 1284 compatible)
Serial RS-232C
Printhead Life 400 million characters (Draft mode)
Power Supply AC220V model
Power Consumption
120 watts (self-test)
10 watts (standby)
390(W) x 390(D) x 210(H)mm
Weight Approx. 14.0kg

These specifications are subject to change without notice.
