Printer Products ... DOT Matrix Printers

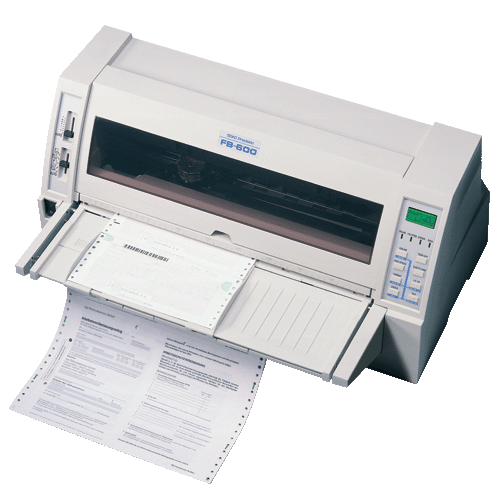

FB-600 ... 24-pin wide-carriage dot matrix printer
High Speed Flatbed Printer
with Multi Form Capability
to Get the Job Done

<> User-friendly interface.Graphic LCD depicting printer status, and two slide levers with easy access.
<> Stable and reliable paper handling. 4RD(4 Roller-shaft Drive)makes sure the form gets through.
<> Printable on a variety of media. Invoices, receipts, tickets, and other forms printable with removable tractor unit(front/rear).
<> Maximum 2.0mm thickness capability. Accommodates thick cards for mission-critical printing in offices, shops and factories.


User-friendly interfaces
There's nothing complicated about FB-600. Operation is simplified with a graphic LCD on the operation panel that visually depicts the paper path by automatically linking to the paper path lever. The gap between the print head and paper can be adjusted using a simple slide lever, or left to the Auto Adjustment Function.

Stable and reliable paper handling
FB-600's 4RD(4 Roller-shaft Drive)mechanism delivers stable, reliable paper feeding with two linefeed motors. These two motors, which drive four roller shafts, offer improved and well-balanced traction no matter what type of form or document you're dealing with.

Printable on a variety of media
The multiple paper path capability and paper thickness flexibility of FB-600 will enable printing on invoices, tickets, and many other single or multipart forms.

Maximum 2.0mm thickness capability
By accepting forms up to 2.0mm thick, FB-600 is able to handle many types of media such as thick cards, notebooks, and passport-like booklets.
When inserting notebooks or passport-like booklets, be sure to have the stitch positioned horizontally.

To further enhance versatility, FB-600 can be equipped with a 150-sheet cut-sheet feeder which can even hold A3 paper in landscape orientation.
#FB-60008 Tractor Unit
#FB-84009 Cut Sheet Feeder
#FB-60051 Ribbon Cassette
#FB-60090 Print Head

Print method 24-pin dot matrix impact
Bidirectional (text & graphics)
Print speed
Draft 15cpi
Draft 12cpi
Draft 10cpi
HQ DR 10cpi
LQ 10cpi
Line feed speed 36 lines/second
Emulation EPSON LQ-2550, IBM 2391
Data Buffer 64 Kbytes
Resident Font Roman, Sans-serif, Courier, Prestige, Script, Gothic, OCR-A, OCR-B, Orator and Orator-S
Character Set EPSON character sets,
Code Page
437, 850, 857, 858, 860, 861, 863, 865, BRASCII, ABICOMP, ISO-8859-1,
(European Version: Code Page
772, 774, 851, 852, 853, 855, 864, 866, 869, BULGARIA, ESTONIA, HUNGARIAN, IBM Russian, Lithuanian KBL, MAZOWIA, MJK, USSR GOST, 437 Greek, 866 Latvian, 866 Ukrainian, 1252, 1250, ISO-8859-2, 3, 4, 5, 7, 9, 10, 15)
Barcode Industrial 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, Codabar, Code 11, Code 39, Code 93, Code 128, EAN-8, EAN-13, UPC-A, UPC-E, POSTNET
Paper feed Push tractor or friction

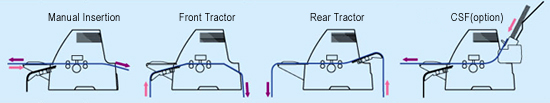

Paper path
:Front push tractor(*1)

:Rear push tractor(*1)
Cut sheet
:Front Manual Insertion,

front or rear ejection is selectable,

:Cut Sheet Feeder(Option)
Detection function
:Paper Jam, Paper Skew, Paper Width
Paper Widtn
Cut sheet

Paper Thickness
:0.52mm max.
Cut sheet
:2.0mm max. (manual)

:0.12mm max. (CSF)
Multipart Form
Original plus 6 duplicates (Dark mode)
Original plus 4 duplicates (Normal mode)
Operating Panel
Graphic LCD, Paper path lever, Gap adjust lever (*2)
Printing Ribbon
Special cassette-type black fabric ribbon
Ribbon life: 15 million charactors (Draft mode)
Parallel (Bidirectional/EEE 1284 compatible) and
RS-232C, Automatic I/F selection function
Printhead Life 300 million characters (Draft mode)
MTBF 10,000 hours
Power Supply AC230V model or AC120V model (50/60 Hz)
Power Consumption
200 watts (self-test)
45 watts (standby)
14 watts (sleeping mode)
635(W) x 465(D) x 294(H)mm at Operation
635(W) x 335(D) x 294(H)mm at Storage
Weight Approx. 22.0kg
*1 Removable tractor unit can be used front and rear.
*2 The paper path and gap are automatically adjusted according to the lever setting position.
These specifications are subject to change without notice.
All trademarks or registered trademarks are property of their respective owners.
