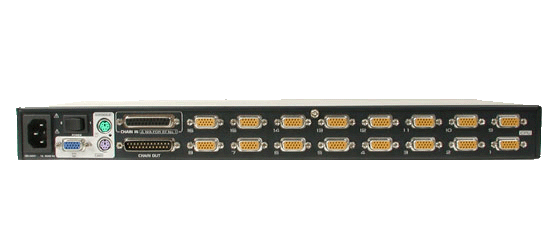

Rear View
|
|
Related Products
|
PS/2 Console Extension Module
KA-9250 |
 |
KVM Extension Module
|
|
|
Daisy Chain Cables
KC-1700/KC-1701 |
 |
Daisy Chain Cables for Altusen switches 0.8m or 1.2m, DB25M/DB25F
|
|
|
|
|
KVM LCD Console Switch
KL-0116 |
 |
| 16-port KVM LCD console switch in 1U height, including built-in keyboard, touchpad, LCD monitor, control up to 512 servers |
|
|
|
|
|
16 Port High Density KVM Switch (KH0116)
|
16-port high density KVM switch in 1U height, control up to 512 servers by one keyboard, mouse, and monitor
The new Altusen 16-port high density KVM switch offers a highly
efficient network management solution. Specially designed high density
console connectors allow a 16 port KVM switch to use only a 1U high
rack space, and control up to 512 computers through daisy chaining.
This switch offers many advanced features such as an intuitive OSD (On
Screen Display), Hot Keys, excellent video resolutions, 2 level
password security for users with different security clearance, flash
ROM for firmware upgrade, remote console and more.
Features
- Control 16 computers directly, or up to 512
computers through daisy chain, with only one keyboard, monitor and mouse
- High density 16 port KVM switch is rack mountable and only 1U high
- Neatly designed, high-quality, custom cable for the high density server rack
- Color-coded connectors for easy installation
- Dedicated chain ports allow daisy chaining up to
31 additional units--control up to 512 computers from a single console
- "Hot-pluggable" feature allows adding or removing
switches or computers without having to power down the switch
- "Keep-Alive" feature assures all the keyboard and
mouse connections work properly if the KVM switch loses power supply
temporarily
- Auto-sensing of station positions for daisy
chained installations --no need for manual DIP switch setting--front
panel LED indicates station position
- Port names automatically reconfigured when station sequence is changed
- Two level password security--an administrator and
up to four users, separate files for each, only authorized users
viewing and controlling the computers
- Two level logout--manual and timed
- No software required, convenient computer
selection via intuitive On Screen Display (OSD) menu or Hot Key
combination
- AutoScan offers easy monitoring of connected computers
- PS/2 keyboard & mouse emulation for smooth switching and simultaneously booting multiple computers
- Remote console allows control of KVM from up to 500' away
- Supports PS/2 compatible mice, Microsoft Intellimouse explorer, Logitech FirstMouse+
- Superior video quality--supports resolutions of up to 1920 x 1440
- 19" Rack mountable
- Firmware upgradeable through flash ROM
- 110-220V auto-sensing power supply

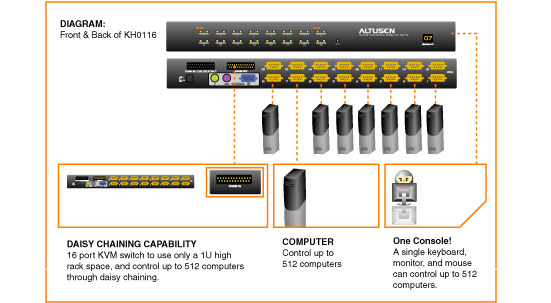

Function
Requirements
- Console:
- A VGA, SVGA, or Multisync monitor capable of the
highest resolution that you will be using on any computer in the
installation;
- A PS/2 mouse;
- A PS/2 keyboard;
- The following equipment must be installed on each computer:
- A VGA, SVGA or Multisync card;
- A 6-pin mini DIN (PS/2) port;
- Either a 6-pin mini DIN (PS/2) keyboard port, or a 5-pin DIN (AT) keyboard port.
Package Contents
- 1 x KH0116
- 2 x Custome KVM cable set
- 1 x RJ11 to serial cable
- 1 x Power cord
- 1 x Rack mount kit
- 1 x User manual
- 1 x Quick start g
- 1 x Warranty registration card
Specifications
|
| Function | KH0116 |
|---|
| Computer Connections |
| Daisy Chain or Cascading |
512 |
| Direct |
16 |
| Console Connectors |
| Flash ROM Upgrade |
RJ11 |
| Keyboard |
1 x 6 pin mini-DZN F |
| Monitor |
1 x HDB-15 F |
| Mouse |
1 x 6 pin mini-DZN F |
| Remote Console |
1 x RJ45 |
| CPU Connectors |
| Keyboard, Mouse, and Video |
16 x DB15F |
| Daisy Chain |
1 x DB-25M ; 1 x DB-25F |
| Dimensions |
| Depth |
8.4" |
| Height |
1.75" |
| Width |
19" |
| Emulation |
| Keyboard |
PS/2 |
| Mouse |
PS/2 |
| Housing |
| Case |
Metal |
| Humidity |
0 - 80% RH |
| LEDs |
| On Line |
16 (orange) |
| Power On |
1 (blue) |
| Selected |
16 (green) |
| Station ID |
2 x 7 Segments |
| Port Selection |
Hotkeys ; OSD (On Screen Display) |
| Power |
| Voltage |
110 - 220 Auto Sensing |
| Power Connections |
3-Prong AC |
| Scan Interval |
User Specified: 1 - 255 secs. |
| Video Resolution |
1920 x 1440; DDC2 |
|
|
|
|
