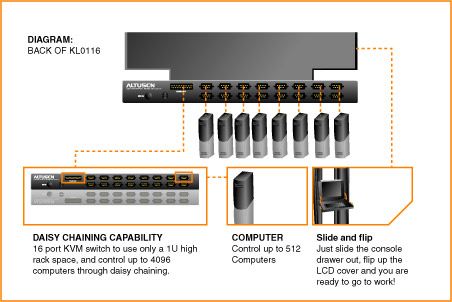

Rear View
|
|
Related Products
|
PS/2 Console Extension Module
KA-9250 |
 |
KVM Extension Module
|
|
|
Daisy Chain Cables
KC-1700/KC-1701 |
 |
Daisy Chain Cables for Altusen switches 0.8m or 1.2m, DB25M/DB25F
|
|
|
|
|
High Density KVM Switch
KH-0116 |
 |
| 16-port high density KVM switch in 1U height, control up to 512 servers by one keyboard, mouse, and monitor |
|
|
|
|
|
16 Port High Density KVM LCD Switch (KL0116)
|
16-port KVM LCD console switch in 1U height, including built-in keyboard, touchpad, LCD monitor, control up to 512 servers
The new Altusen KVM LCD console is your ideal network management
solution. It combines a 16 port KVM switch, keyboard, 15" LCD display,
and touchpad into a neatly arranged, 1U high rack-mountable drawer.
Mount the KVM LCD console at any height within the rack for maximum
comfort and convenience. The Altusen KVM LCD console saves precious
rack cabinet space while offering the most efficient way to control
multiple computers.

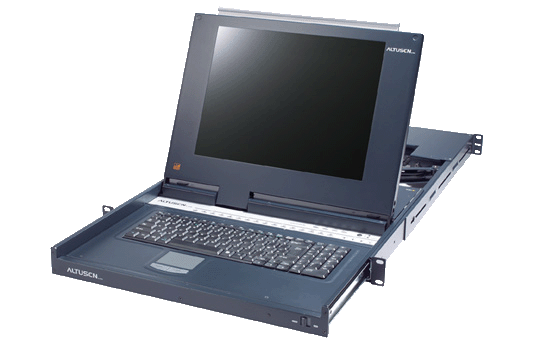

Just slide the console drawer out, flip up the LCD cover and you are ready to go to work!
Features
- A single LCD console drawer with built-in KVM switch controls up to 16 computers directly
- A 16 port KVM switch, keyboard, 15" LCD display, and touchpad all combined into a neatly arranged, 1U high rack-mountable drawer
- Dedicated daisy chain port to link up to 31 more High
Density KVM Switches (model KH0116) and allows you to control up to 512
computers from a single console
- Plug-n-Play; no software required
- Convenient computer selection via intuitive mouse-driven On Screen Display (OSD) menus or Hot Key combinations
- Remote console port offers the option to control your servers from up to 500' away
- AutoScan feature for monitoring selected computers
- Hot pluggable; add or remove computers without having to power down the switch
- Auto-sensing of station position on daisy chained installations - no need for manual DIP switch setting
- Front panel LED indicates station position for easy observation
- Port names automatically reconfigured when station sequence is changed
- Two level password security: up to four authorized
users and an administrator view and control the computers, with
separate profiles for each
- Two level logout - manual and timed
- PS/2 keyboard and mouse emulation allows computers to boot even when they are not selected
- 15inch RGB analog LCD display supporting high XGA resolutions of up to 1024 x 768 with 250cd/m(sq) brightness
- Firmware upgradeable through flash ROM
- 110-220V auto-sensing power supply
Function
Requirements
- The following equipment must be installed on each computer:
- A VGA, SVGA or Multisync card;
- (Note: Since the integrated LCD monitor's maximum
resolution is 1024 x 768, make sure that the computer resolution
settings do not exceed 1024 x 768.)
- A 6-pin mini-DIN (PS/2 style) mouse port;
- Either a 6-pin mini-DIN (PS/2 Style) keyboard port
with +5V DC on pin 4 and Ground on pin 3, or a 5-pin DIN (AT Style)
keyboard port with +5V DC on pin 5 and ground on pin 4;*
* * See the note under Cables in the next section.
Cables:
* For optimum signal integrity and to simplify the
layout, we strongly recommend that you use the following high quality
Altusen Custom Cables:
Altusen KVM to computers:
- KC5201P - 4'
- KC5202P - 6'
- KC5203P - 10'
Altusen KVM to Altusen KVM (Daisy Chaining):
(Note: 1. KL0116 does not support serial mice. You cannot use Serial-to-PS/2 adapters with the extender cables
2. If your computer uses an AT style keyboard socket
you will need to purchase a STANDARD PS/2-to-AT keyboard adapter, in
order to plug the cable into keyboard port of the computer.)
Package Contents
- 1 x KL0116
- 1 x Power cord
- 2 x Custom KVM cable set
- 1 RJ11 to serial cable
- 1 x Manual
- 1 x Quick start guide
- 1 x LCD OSD quick reference
- 1 CD
Specifications
|
| Function | KL0116 |
|---|
| Computer Connections |
| Daisy Chain or Cascading |
512 |
| Direct |
16 |
| Console Connectors |
| Flash ROM Upgrade |
1 x RJ11 |
| Remote Console |
1 x RJ45 |
| CPU Connectors |
| Keyboard, Mouse, and Video |
16xDB15F |
| Daisy Chain |
1 DB25M (Daisy Chain Out) |
| Dimensions |
| Depth |
24" |
| Height |
1.75" |
| Width |
19" |
| Emulation |
| Keyboard |
PS/2 |
| Mouse |
PS/2 |
| Housing |
| Case |
Metal |
| Humidity |
0 - 80% RH |
| LEDs |
| On Line |
16 (orange) |
| Power On |
1 (blue) |
| Selected |
16 (green) |
| Port Selection |
Hotkeys ; OSD (On Screen Display) |
| Power |
| Voltage |
110 -220V Auto-sensing |
| Power Consumption |
120V, 60Hz, 24W; 230V, 50Hz, 24W |
| Video Resolution |
1024x768 ; 15" TFT LCD |
|
|
|
|
