KVM Extension Module (KA-9250)
KVM Extension Module

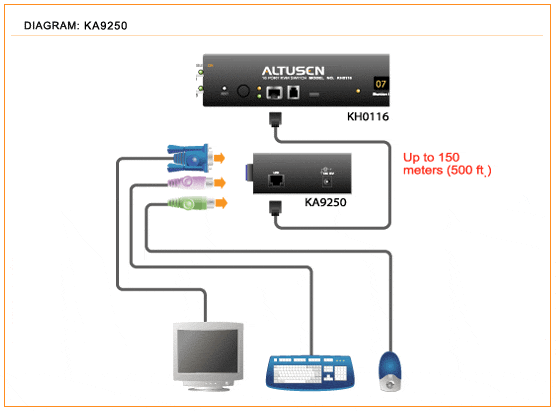

The KA9250 KVM Extender Module allows the KH0116 or KL0116 high density KVM switch to be operated from a remote console to up to 150 meters (500 ft.) away. The KA9250 features a custom ASIC ensuring the utmost in reliability and compatibility and can also sense the distance to KH0116 or KL0116 and automatically adjust the gain to compensate.

Features

  • Built-in ASIC for Greater Reliability and Compatibility
  • Category 5 Cable to Connect the Remote Unit to the KH0116 or KL0116 - Up To 150m Away
  • Push Button Selection of the Active Console
  • High Resolution Video - Up To 1280 x 1024
  • Supports VGA, SVGA, and Multisync Monitors
  • Automatic Gain Control - Automatically Adjusts Signal Strength to Compensate for Distance
Function



Package Contents
  • 1 KA9250 KVM Extender Module
  • 1 Power Adapter
  • 1 User Manual
  • 1 Quick Start Guide
  • 1 Registration Card

Specifications

Function
KA9250

Connectors

 Keyboard 1 x 6 pin mini-DIN female
Mouse 1 x 6 pin mini-DIN female
Monitor 1 x 15 pin HDB female
Unit To Unit 8P8C Jack

LEDs

 1 Power On
1 On Line
Cable Length
150m [500'] (max.)
Video Resolution
1280 x 1024
Power Consumption
AC 9V 4.0W (max.)
Housing Metal
Weight 220 g
Dimensions (L x W x H) 100 x 80 x 35 mm




Street Price £120
